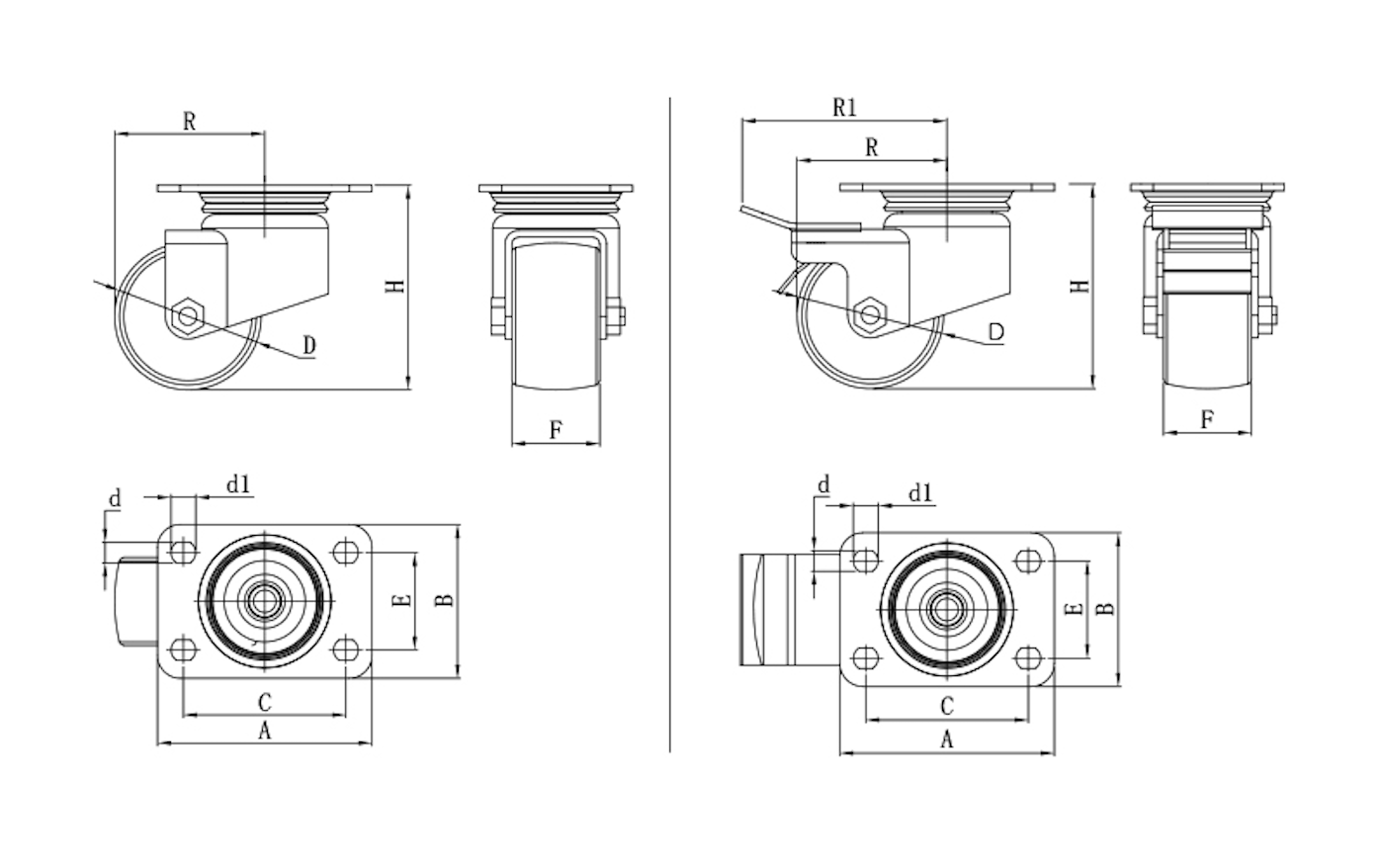

MODEL NO. | D | H | F | A | B | C | E | D | D1 | R | R1 | ALLOWABLE LOAD CAPACITY (KG) |
K-105-25-2 | 65 | 90.5 | 39 | 95 | 68 | 72 | 43 | 9 | 11 | 66.5 | / | 180 |
K-105-30-2 | 75 | 105 | 45 | 105 | 80 | 82.5 | 60 | 9 | 11 | 62.5 | / | 220 |
K-105-25-3 | 65 | 90.5 | 39 | 95 | 68 | 72 | 43 | 9 | 11 | 66.5 | 91.5 | 180 |
K-105-30-3 | 75 | 105 | 45 | 105 | 80 | 82.5 | 60 | 9 | 11 | 62.5 | 89.5 | 220 |
