Equipment Leveling Feet

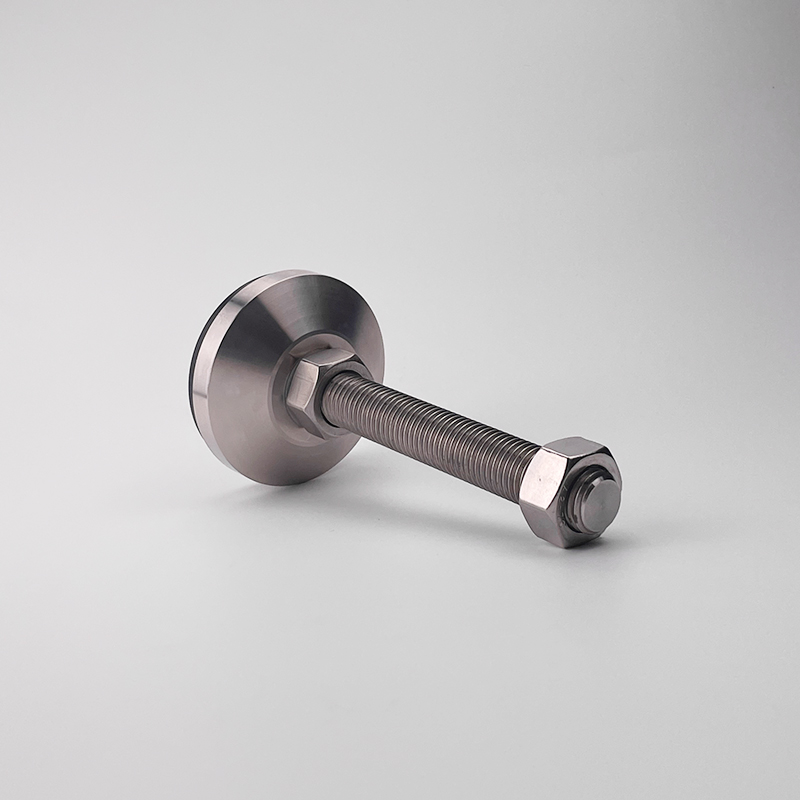

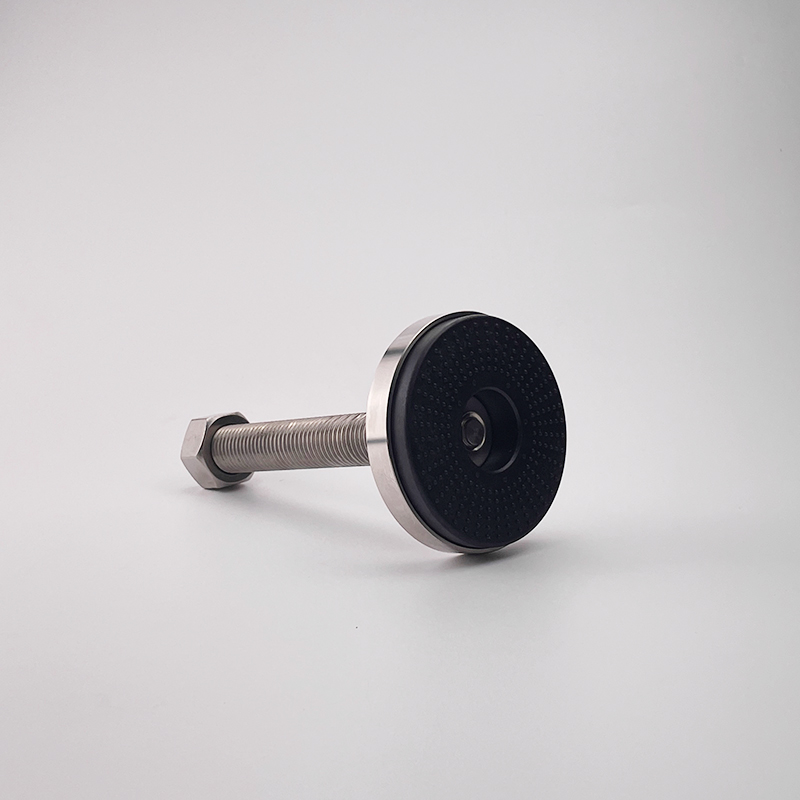

KC-2276S Equipment Leveling Feet

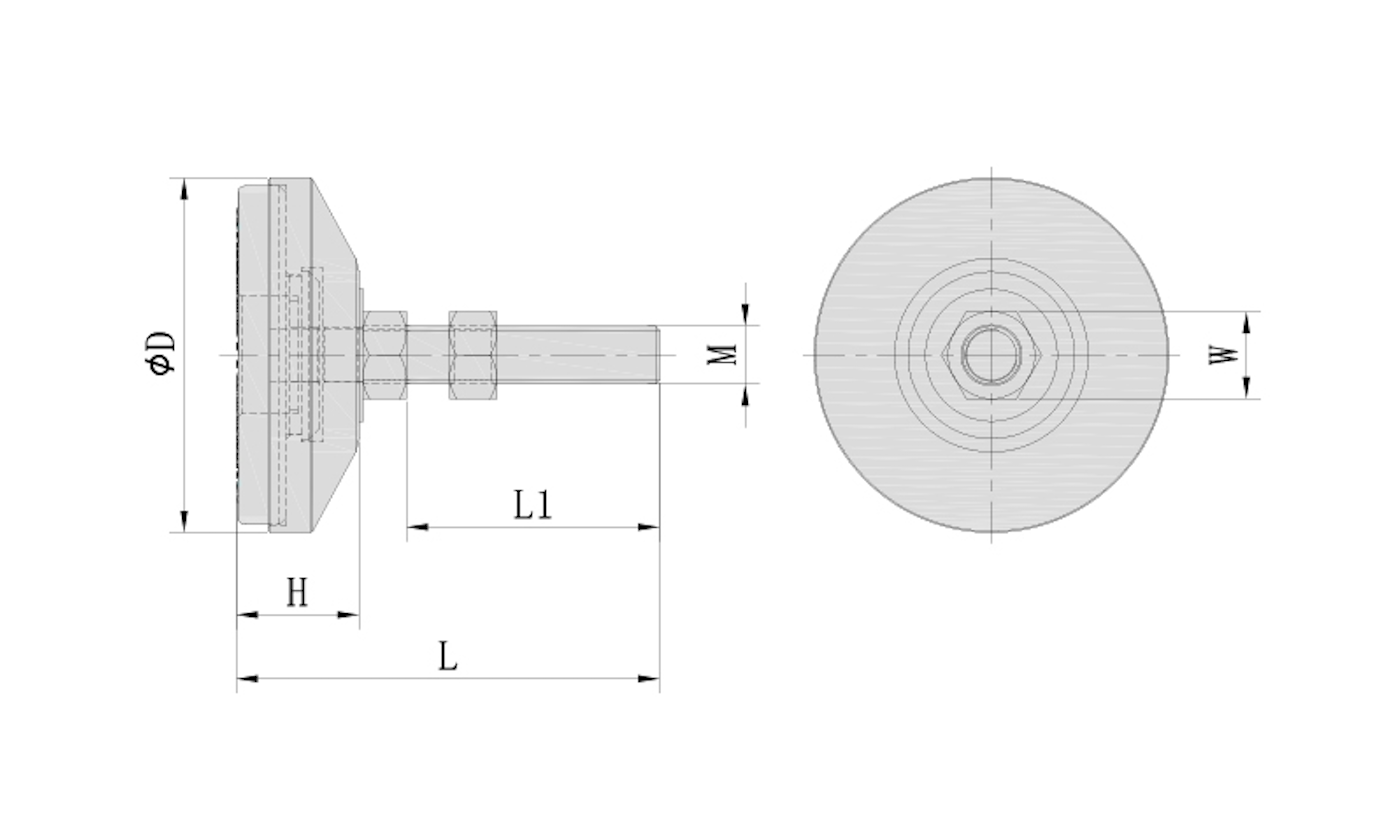

Technical Drawing



Construction equipment levelling



Datasheet



MODEL NO. D±2 M A L±3 W VERTICAL LOAD (KGF)
KC-2276S-98-16-70 98 16 70 117 24 2000
KC-2276S-98-16-100 98 16 100 147 24 2000
KC-2276S-98-16-150 98 16 150 197 24 2000
KC-2276S-98-20-100 98 20 100 149 30 2000
KC-2276S-98-20-150 98 20 150 199 30 2000
KC-2276S-98-24-100 98 24 100 152 36 3000
KC-2276S-98-24-150 98 24 150 202 36 3000
EXAMPLE: NAME + BASE OUTER DIAMETER + THREAD + THREAD LENGTH → KC-2276S-98-16-70
