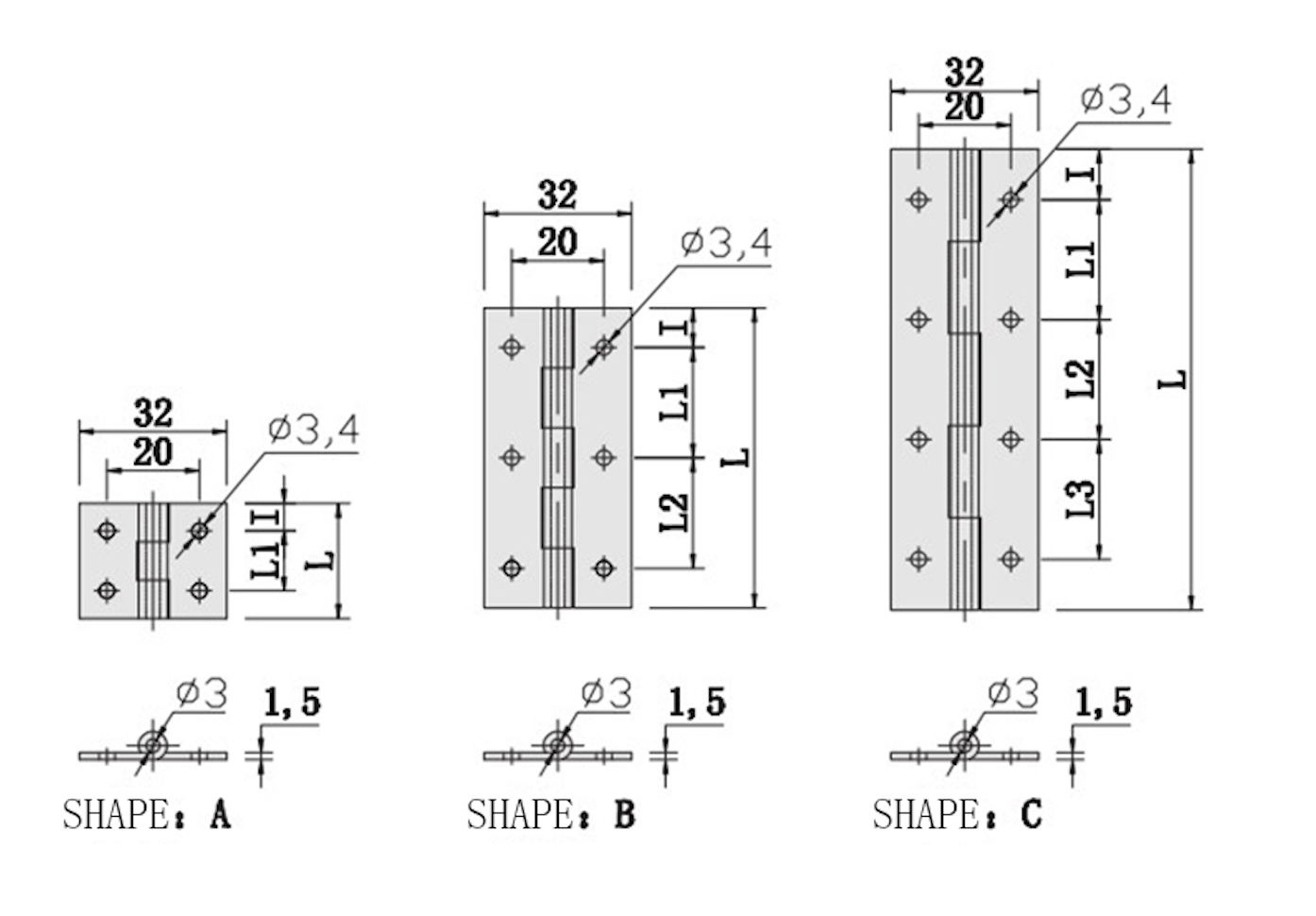

| MODEL NO. | L | SHAPE | l | L1 | L2 | L3 | SEGMENTS | ALLOWABLE LOAD CAPACITY(N) |
|
| SURFACE FINISH: VIBRATION POLISHING |
SURFACE FINISH: WIREDRAWING |
||||||||
| B-1028S-25-P | B-1028S-25-S | 25 | A | 6 | 13 | - | - | 3 | 28 |
| B-1028S-30-P | B-1028S-30-S | 30 | A | 7 | 16 | - | - | 3 | 38 |
| B-1028S-40-P | B-1028S-40-S | 40 | A | 8 | 24 | - | - | 3 | 58 |
| B-1028S-50-P | B-1028S-50-S | 50 | A | 10 | 30 | - | - | 3 | 68 |
| B-1028S-65-P | B-1028S-65-S | 65 | B | 8.5 | 24 | 24 | - | 5 | 98 |
| B-1028S-75-P | B-1028S-75-S | 75 | B | 9.5 | 28 | 28 | - | 5 | 108 |
| B-1028S-90-P | B-1028S-90-S | 90 | B | 10 | 35 | 35 | - | 5 | 128 |
| B-1028S-100-P | B-1028S-100-S | 100 | C | 11 | 26 | 26 | 26 | 5 | 147 |
