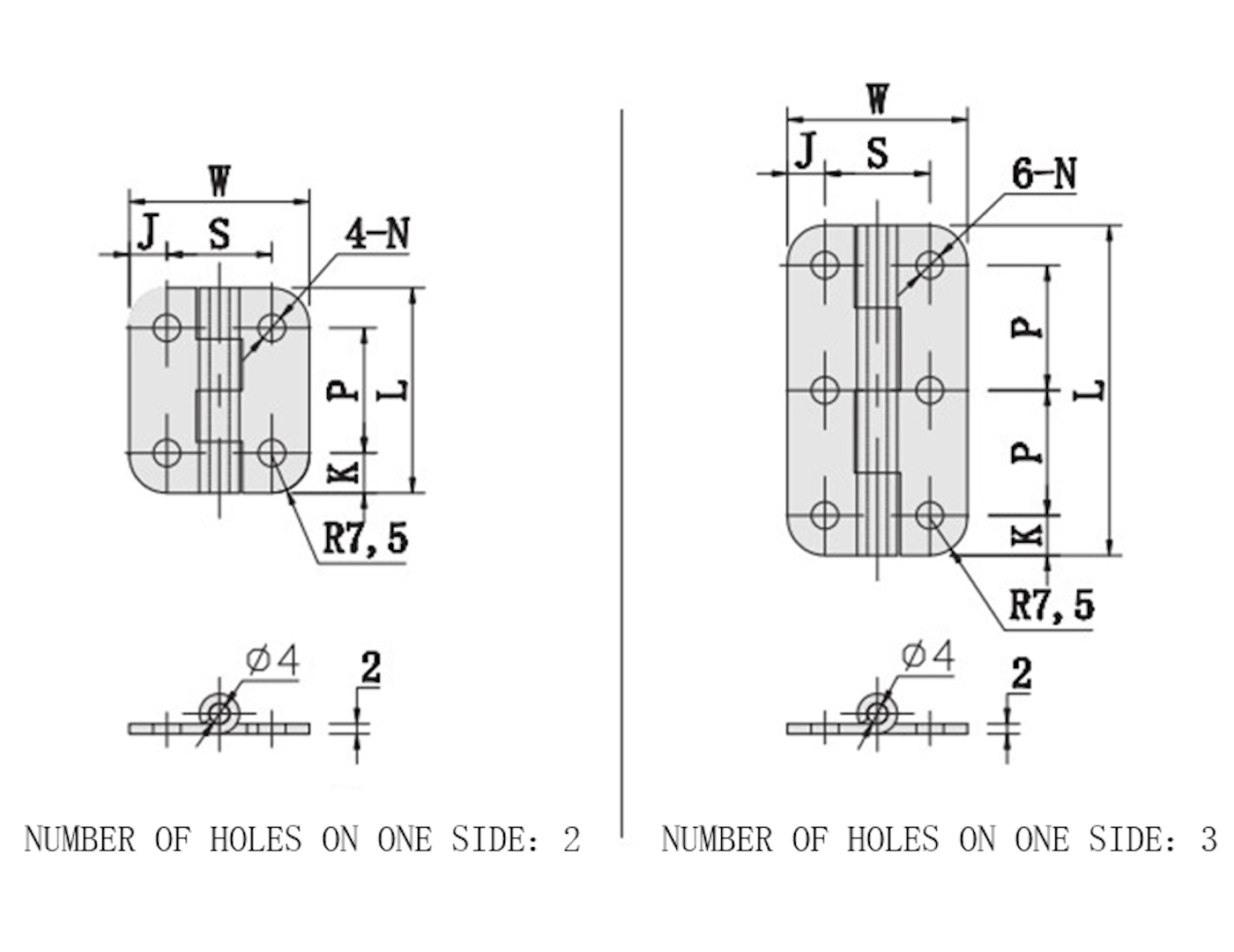

| MODEL NO. | SINGLE HOLE NUMBER |
L | W | K | P | J | S | N | ALLOWABLE LOAD CAPACITY(N) |
|
| SURFACE FINISH: TUMBLING |
SURFACE FINISH: HAIRLINE WIREDRAWING |
|||||||||
| B-1030S-1-P | B-1030S-1-S | 2 | 41 | 36 | 8 | 25 | 7.5 | 21 | 5.5 | 80 |
| B-1030S-2-P | B-1030S-2-S | 3 | 66 | 8 | 25 | 7.5 | 21 | 5.5 | 100 | |
| B-1030S-3-P | B-1030S-3-S | 2 | 48 | 48 | 9 | 30 | 8 | 32 | 5.5 | 110 |
| B-1030S-4-P | B-1030S-4-S | 3 | 78 | 9 | 30 | 8 | 32 | 5.5 | 140 | |
| B-1030S-5-P | B-1030S-5-S | 2 | 59 | 62 | 11 | 37 | 10 | 42 | 6.5 | 240 |
| B-1030S-6-P | B-1030S-6-S | 3 | 96 | 11 | 37 | 10 | 42 | 6.5 | 340 | |
| B-1030S-7-P | B-1030S-7-S | 2 | 70 | 80 | 13.5 | 43 | 16.5 | 47 | 6.5 | 290 |
| B-1030S-8-P | B-1030S-8-S | 3 | 113 | 13.5 | 43 | 16.5 | 47 | 6.5 | 390 | |
