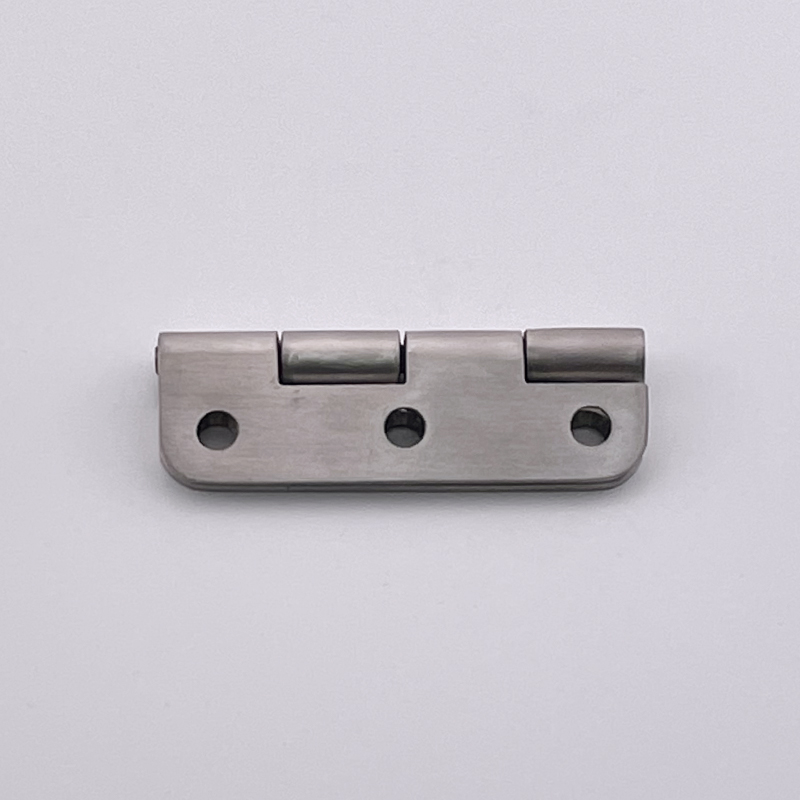

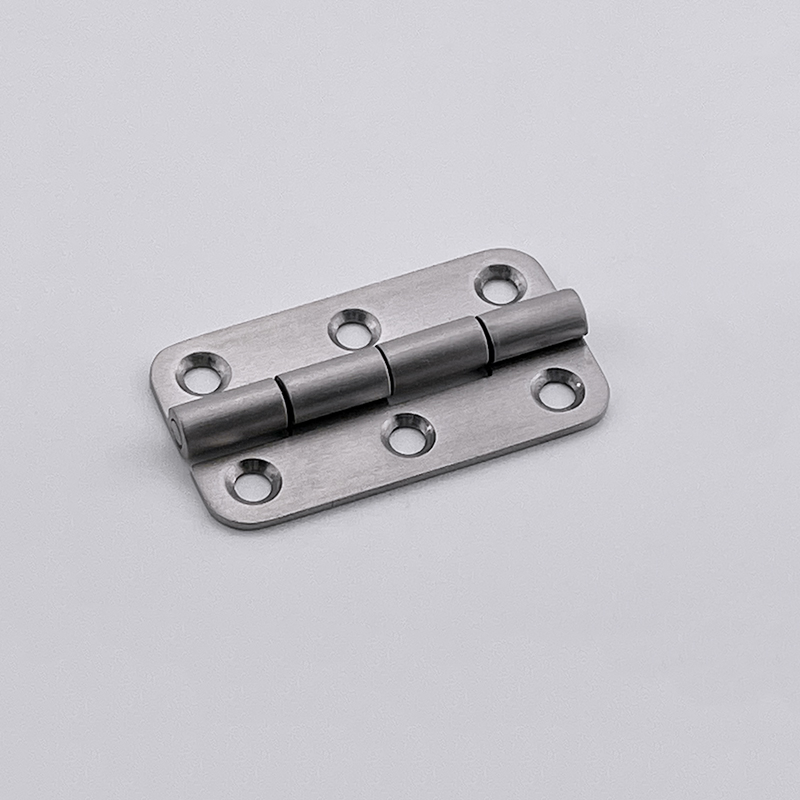

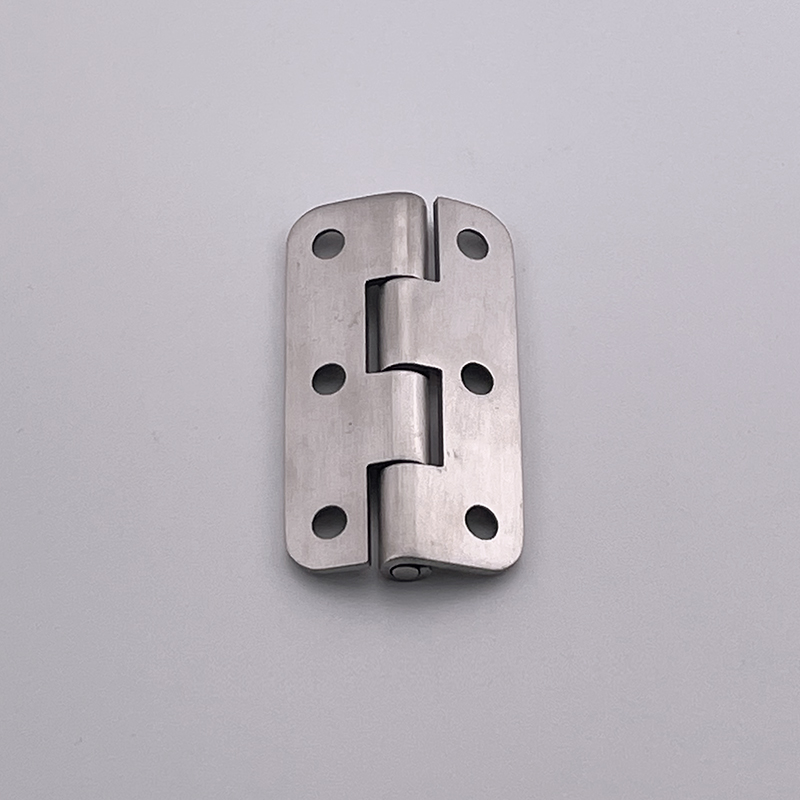

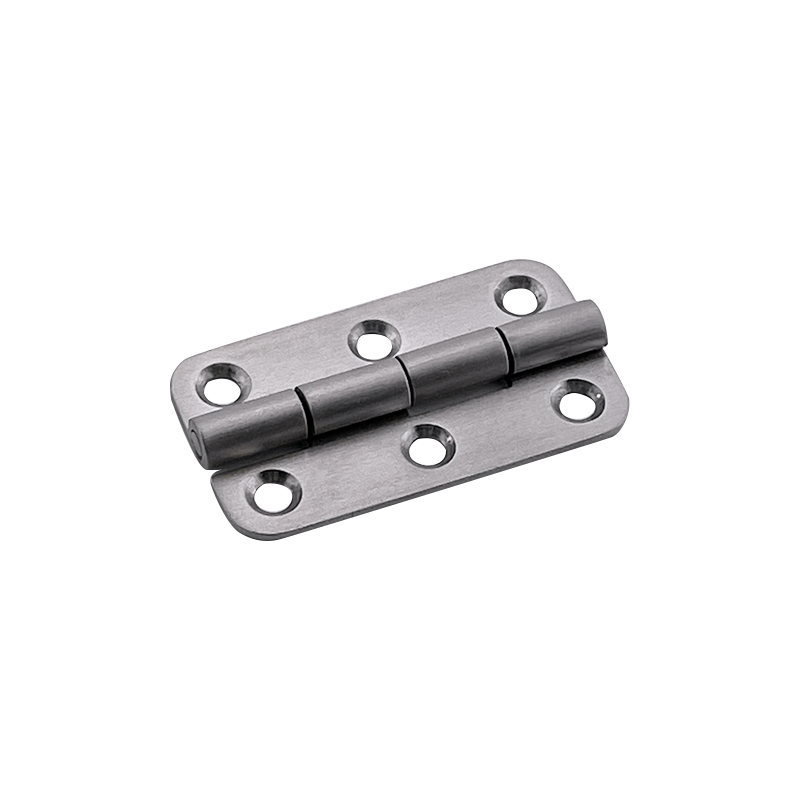

| MODEL NO. | SINGLE HOLE NUMBER |

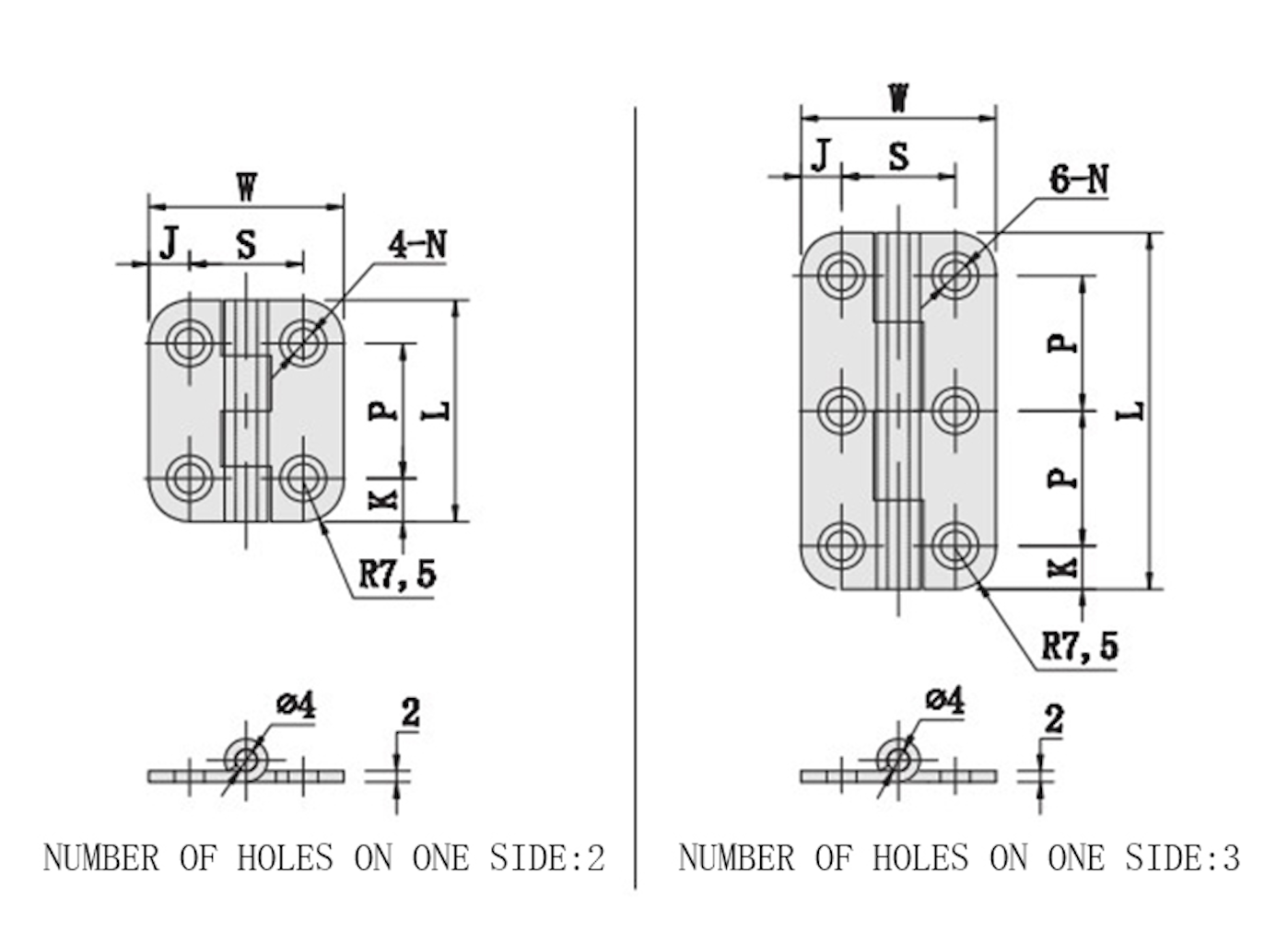

L | W | K | P | J | S | N | ALLOWABLE LOAD CAPACITY (N) |
||
| SURFACE FINISH: VIBRATION POLISHING |
SURFACE FINISH: WIREDRAWING |
THROUGH HOLE |
ROUND TAPER HOLE |
||||||||
| B-1031S-1-P | B-1031S-1-S | 2 | 41 | 36 | 8 | 25 | 7.5 | 21 | 5.5 | 8.6(M4) | 80 |
| B-1031S-2-P | B-1031S-2-S | 3 | 66 | 36 | 8 | 25 | 7.5 | 21 | 100 | ||
| B-1031S-3-P | B-1031S-3-S | 2 | 48 | 48 | 9 | 30 | 8 | 32 | 110 | ||
| B-1031S-4-P | B-1031S-4-S | 3 | 78 | 48 | 9 | 30 | 8 | 32 | 140 | ||
| B-1031S-5-P | B-1031S-5-S | 2 | 59 | 62 | 11 | 37 | 10 | 42 | 6.5 | 10.6(M5) | 240 |
| B-1031S-6-P | B-1031S-6-S | 3 | 96 | 62 | 11 | 37 | 10 | 42 | 340 | ||
| B-1031S-7-P | B-1031S-7-S | 2 | 70 | 80 | 13.5 | 43 | 16.5 | 47 | 290 | ||
| B-1031S-8-P | B-1031S-8-S | 3 | 113 | 80 | 13.5 | 43 | 16.5 | 47 | 390 | ||
