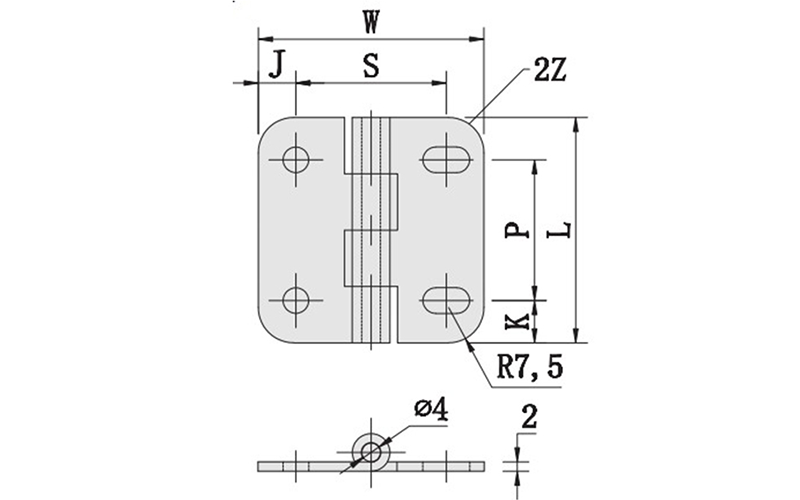

| MODEL NO. | L | W | K | P | J | S | N | Z | ALLOWABLE LOAD CAPACITY (N) | |
| SURFACE FINISH: VIBRATION POLISHING |
SURFACE FINISH: WIREDRAWING |
|||||||||
| B-1032S-1P | B-1032S-1S | 41 | 36 | 8 | 25 | 7.5 | 21 | 5.5 | 5.5X6.5 | 80 |
| B-1032S-2P | B-1032S-2S | 48 | 48 | 9 | 30 | 8 | 32 | 5.5 | 5.5X10 | 110 |
| B-1032S-3P | B-1032S-3S | 59 | 62 | 11 | 37 | 10 | 42 | 6.5 | 6.5X10 | 240 |
