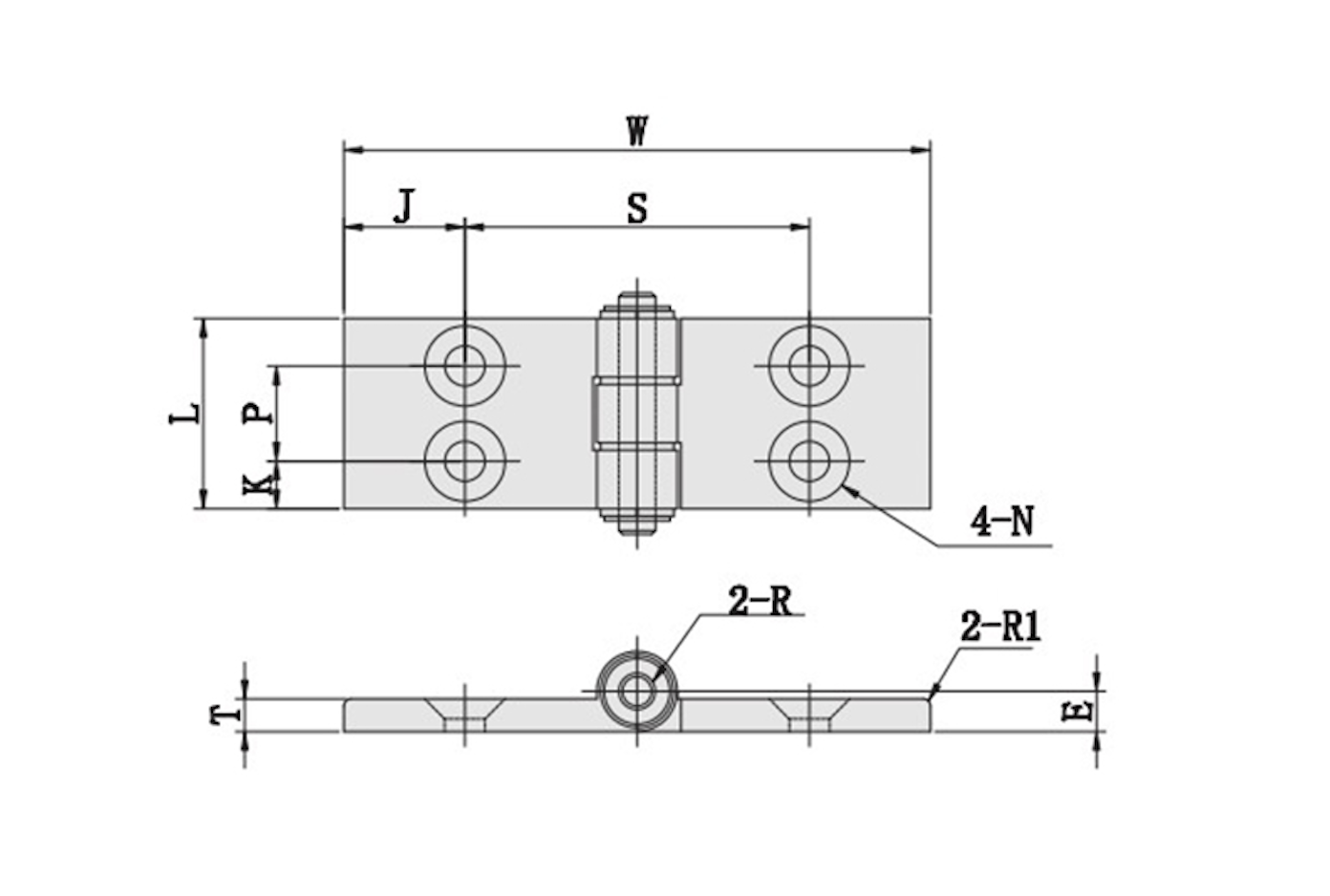

| MODEL NO. | ALLOWABLE LOAD(N) |
L | W | K | P | J | S | N | T | E | R | |||
| ANODIZING (NATURE COLOUR) |
ANODIZING (BLACK) |
KGF | N | THROUGH HOLE |
ROUND TAPER HOLE |
|||||||||
| B-2002-1A-W | B-2002-1A-B | 10 | 98 | 26 | 36 | 6.5 | 13 | 7.5 | 21 | 5.5 | 10 | 3.5 | 5.5 | 5 |
| B-2002-2A-W | B-2002-2A-B | 10 | 98 | 26 | 48 | 6.5 | 13 | 8 | 32 | 5.5 | 11 | 3.5 | 5.5 | 5 |
| B-2002-3A-W | B-2002-3A-B | 15 | 98 | 26 | 62 | 6.5 | 13 | 10 | 42 | 5.5 | 11 | 3.5 | 5.5 | 5 |
| B-2002-4A-W | B-2002-4A-B | 15 | 147 | 26 | 80 | 6.5 | 13 | 16.5 | 47 | 5.5 | 11 | 4.5 | 5.5 | 5 |
