Equipment Gas Springs

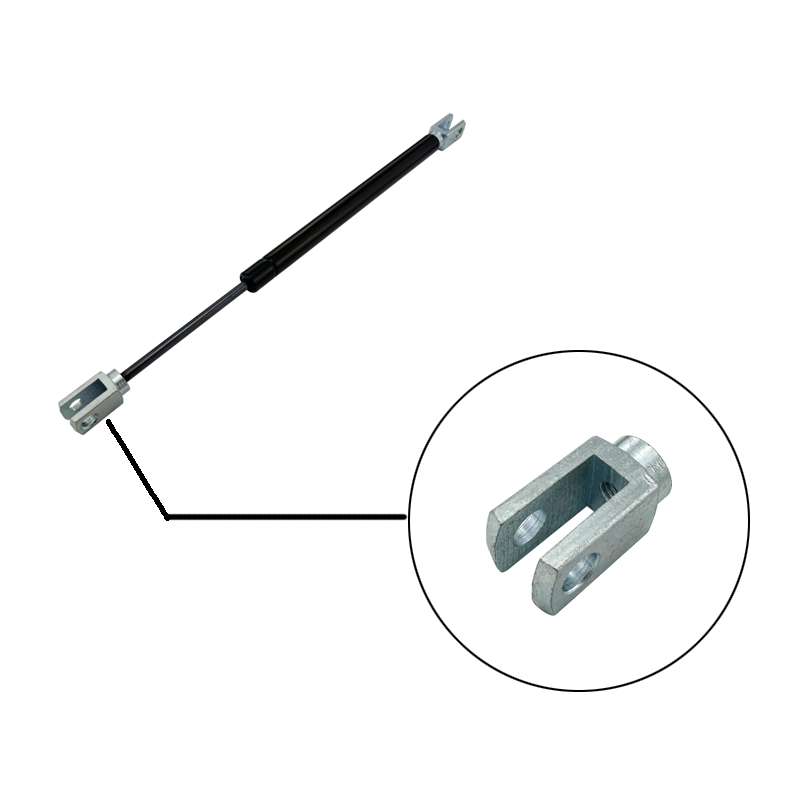

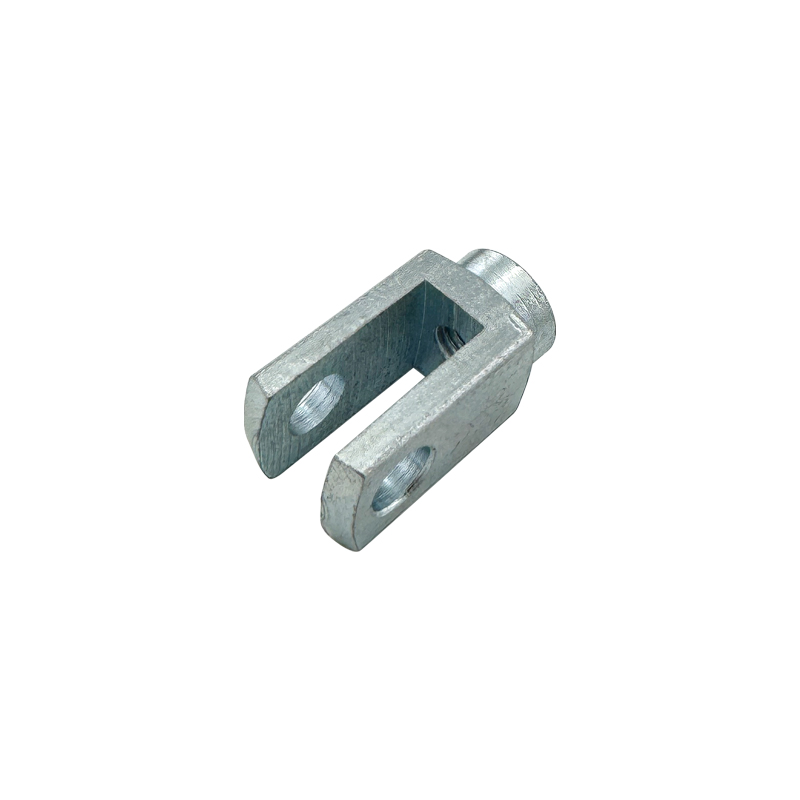

G-C Equipment Gas Springs

Inquiry

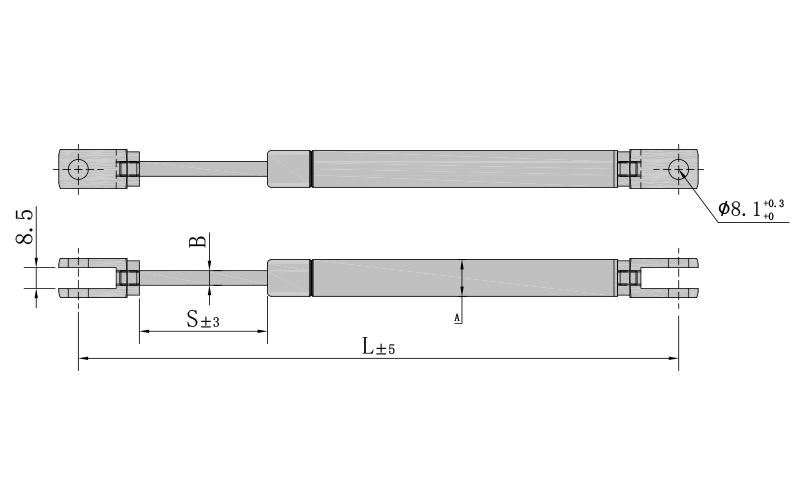

Technical Drawing



Technical Datasheet



MODEL NO. PISTON ROD
DIAMETER		 CYLINDER
BLOCK
DIAMETER		 STROKE GAS FORCE CHARACTERISTIC(20 º) L-MAX L-MIN
L-MAX-10MM STROKE L-MIN+10MM STROKE
B A S±3 FA(KGF)±15% FB(KGF)
REFERENCE VALUE
G-C0615-050-5K 6 15 50 5 7 246 196
G-C0615-050-10K 50 10 13 246 196
G-C0615-080-5K 80 5 7 330 250
G-C0615-080-10K 80 10 13 330 250
G-C0615-100-5K 100 5 7 386 286
G-C0615-100-10K 100 10 13 386 286
G-C0818-100-20K 8 18 100 20 26 388 288
G-C0818-100-30K 100 30 39 388 288
G-C0818-150-20K 150 20 27 528 378
G-C0818-150-30K 150 30 40 528 378
G-C1022-050-20K 10 22 50 20 27 247 197
G-C1022-050-30K 50 30 41 247 197
G-C1022-080-20K 80 20 28 331 251
G-C1022-080-40K 80 40 55 331 251
G-C1022-100-20K 100 20 28 387 287
G-C1022-100-40K 100 40 55 387 287
G-C1022-120-20K 120 20 28 441 321
G-C1022-120-40K 120 40 55 441 321
G-C1022-150-20K 150 20 28 527 377
G-C1022-150-40K 150 40 55 527 377
G-C1022-180-20K 180 20 28 611 431
G-C1022-180-40K 180 40 55 611 431
G-C1022-200-20K 200 20 28 667 467
G-C1022-200-40K 200 40 55 667 467
G-C1022-250-20K 250 20 31 751 501
G-C1022-250-40K 250 40 61 751 501
PS: THE ABOVE MODELS ARE STANDARD PARTS, SUPPORTING CUSTOMIZATION ACCORDING TO CUSTOMER'S NEEDS.
EXAMPLE: G-A0615-050-5K (A JOINT CODE + PISTON ROD DIAMETER 6MM + CYLINDER BLOCK DIAMETER 15MM +
STROKE 40 + INITIAL PRESSURE FA=4KGF)
