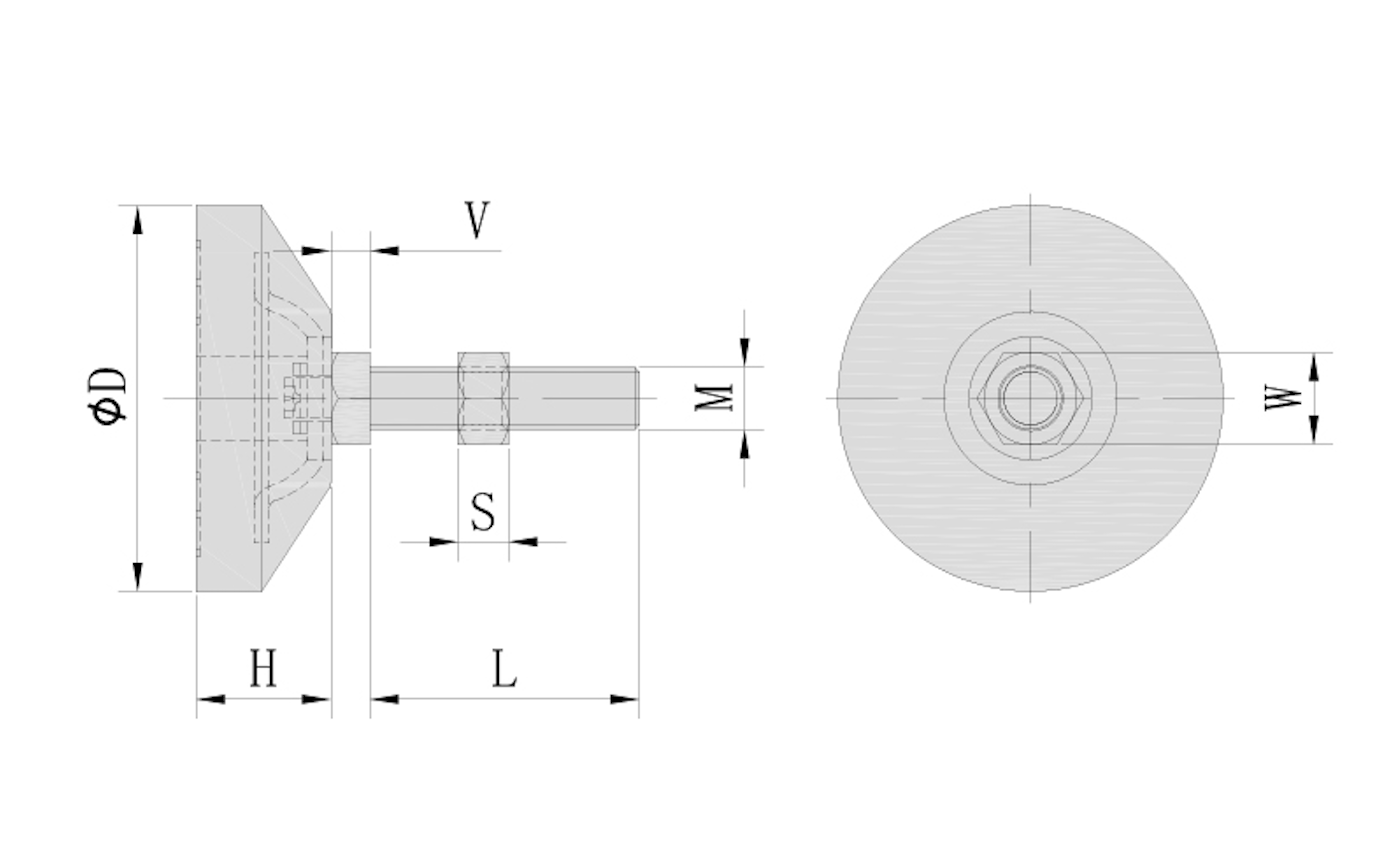

| MODEL NO. | D±2 | L±2 | H±2 | M (UNC) |
V | S | W | VERTICAL LOAD (KGF) |
| KC-1250M-60-12-70 | 60 | 70 | 25 | 12 | 8 | 10 | 19 | 350 |
| KC-1250M-60-12-100 | 60 | 100 | 25 | 12 | 8 | 10 | 19 | 350 |
| KC-1250M-60-16-70 | 60 | 70 | 25 | 16 | 10 | 13 | 24 | 500 |
| KC-1250M-60-16-100 | 60 | 100 | 25 | 16 | 10 | 13 | 24 | 500 |
| KC-1250M-60-20-100 | 60 | 100 | 25 | 20 | 13 | 16 | 30 | 750 |
