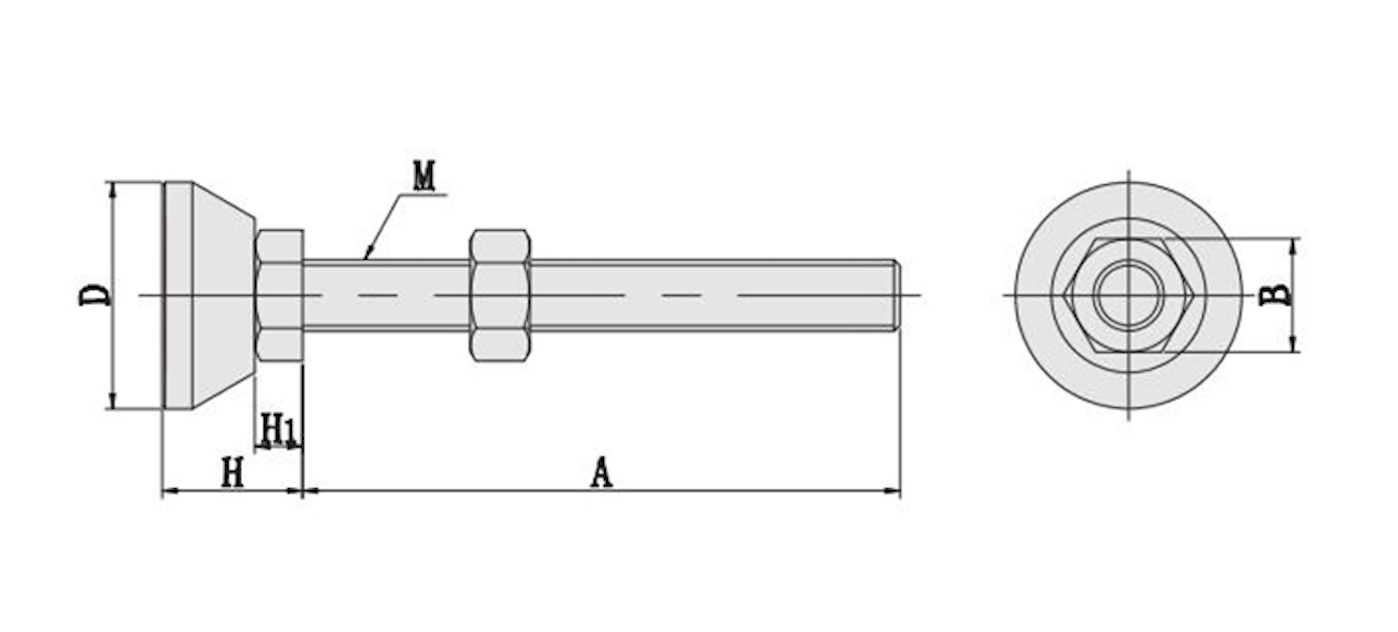

| MODEL NO. | D±2 | H±2 | L±2 | M (UNC) |
V | W | LOAD (KGF) |

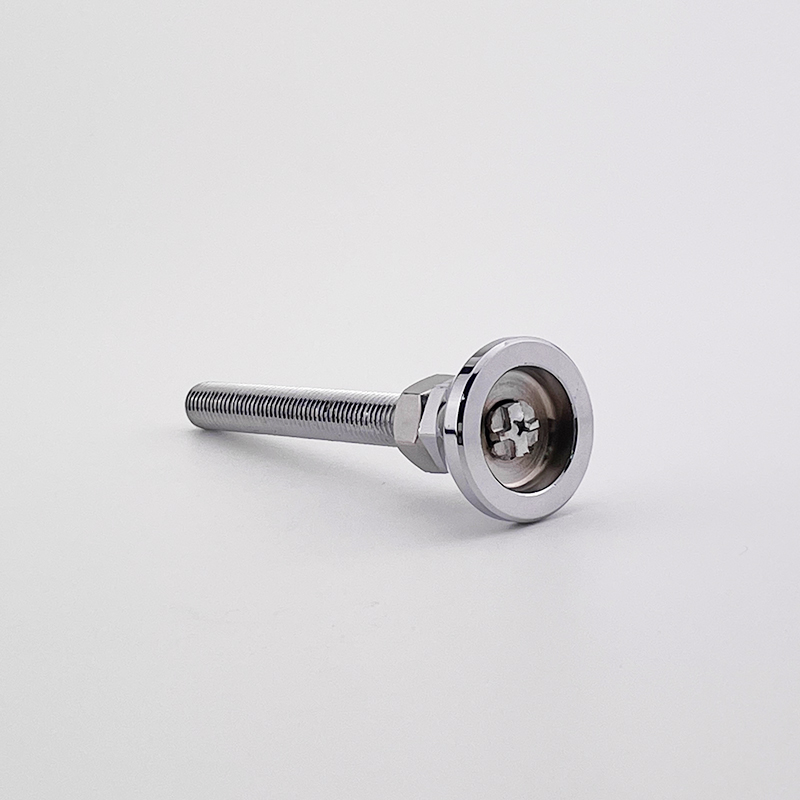

| CARBON STEEL (CHROME PLATED SURFACE) |
|||||||
| KC-1260M-28-8-60 | 28 | 18 | 60 | 8 | 5.5 | 13 | 650 |
| KC-1260M-38-12-70 | 38 | 23 | 70 | 12 | 8 | 19 | 1300 |
| KC-1260M-38-12-100 | 38 | 23 | 100 | 12 | 8 | 19 | 130 |
| KC-1260M-48-8-60 | 48 | 20.5 | 60 | 8 | 5.5 | 13 | 650 |
| KC-1260M-48-12-70 | 48 | 23 | 70 | 12 | 8 | 19 | 1300 |
| KC-1260M-48-12-100 | 48 | 23 | 100 | 12 | 8 | 19 | 1300 |
| KC-1260M-58-8-60 | 58 | 20.5 | 60 | 8 | 5.5 | 13 | 650 |
| KC-1260M-58-12-70 | 58 | 23 | 70 | 12 | 8 | 19 | 1300 |
| KC-1260M-58-12-100 | 58 | 23 | 100 | 12 | 8 | 19 | 1300 |
