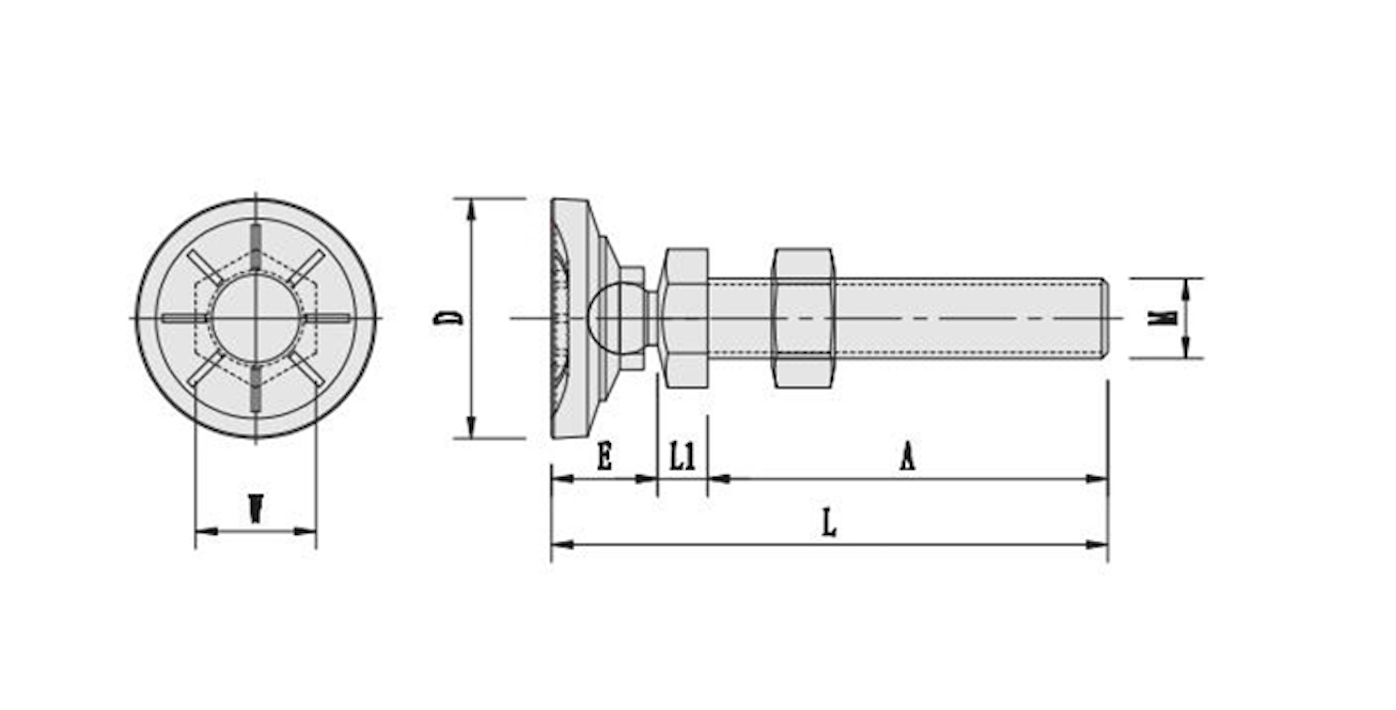

| MODEL NO. | D±2 | L±3 | L1±2 | H±2 | M | V | W | LOAD |
| (UNC) | (KGF) | |||||||
| KC-1262M-40-10-70 | 40 | 95 | 70 | 19 | 10 | 6 | 17 | 250 |
| KC-1262M-40-10-100 | 40 | 125 | 100 | 19 | 10 | 6 | 17 | 250 |
| KC-1262M-40-12-70 | 40 | 98 | 70 | 20.5 | 12 | 7.5 | 19 | 250 |
| KC-1262M-40-12-100 | 40 | 128 | 100 | 20.5 | 12 | 7.5 | 19 | 250 |
| KC-1262M-40-16-100 | 40 | 130.5 | 100 | 20.5 | 16 | 10 | 24 | 250 |
