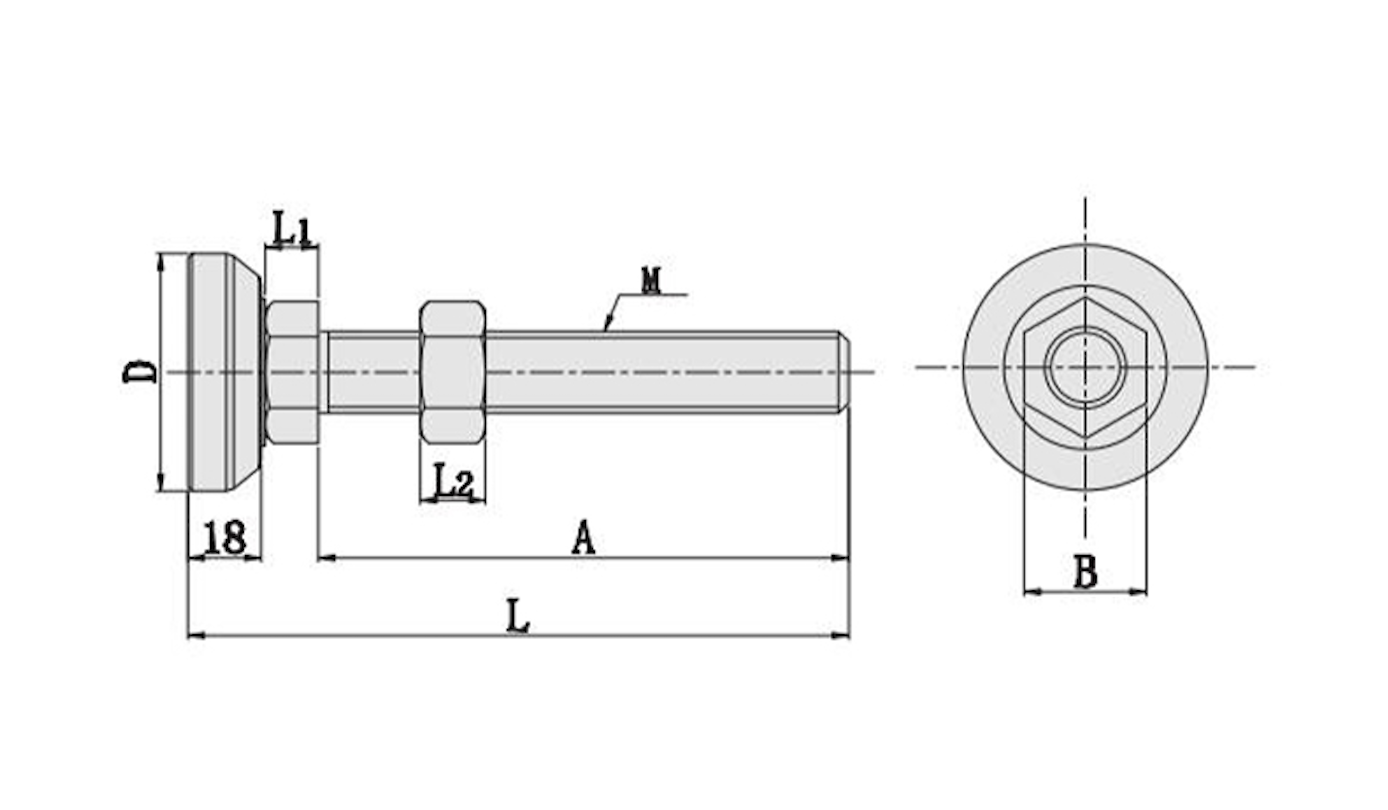

| MODEL NO. | D±2 | L±3 | L1±2 | H±1 | M (UNC) |
V | S | W | LOAD (KGF) |
|
| MATERIAL: CARBON STEEL CHORME FINISH | MATERIAL: STAINLESS STEEL | |||||||||
| KC-1270M-58-10-75 | KC-1270S-58-10-75 | 58 | 100 | 75 | 18 | 10 | 7 | 8 | 17 | 1000 |
| KC-1270M-58-10-100 | KC-1270S-58-10-100 | 58 | 125 | 100 | 18 | 10 | 7 | 8 | 17 | 1000 |
| KC-1270M-58-12-70 | KC-1270S-58-12-70 | 58 | 96 | 70 | 18 | 12 | 8 | 10 | 19 | 1300 |
| KC-1270M-58-12-100 | KC-1270S-58-12-100 | 58 | 126 | 100 | 18 | 12 | 8 | 10 | 19 | 1300 |
| KC-1270M-58-16-70 | KC-1270S-58-16-70 | 58 | 98 | 70 | 18 | 16 | 10 | 13 | 24 | 1660 |
| KC-1270M-58-16-100 | KC-1270S-58-16-100 | 58 | 128 | 100 | 18 | 16 | 10 | 13 | 24 | 1660 |
| KC-1270M-58-20-100 | KC-1270S-58-20-100 | 58 | 131 | 100 | 18 | 20 | 13 | 16 | 30 | 3000 |
| KC-1270M-58-20-130 | KC-1270S-58-20-130 | 58 | 161 | 130 | 18 | 20 | 13 | 16 | 30 | 3000 |
