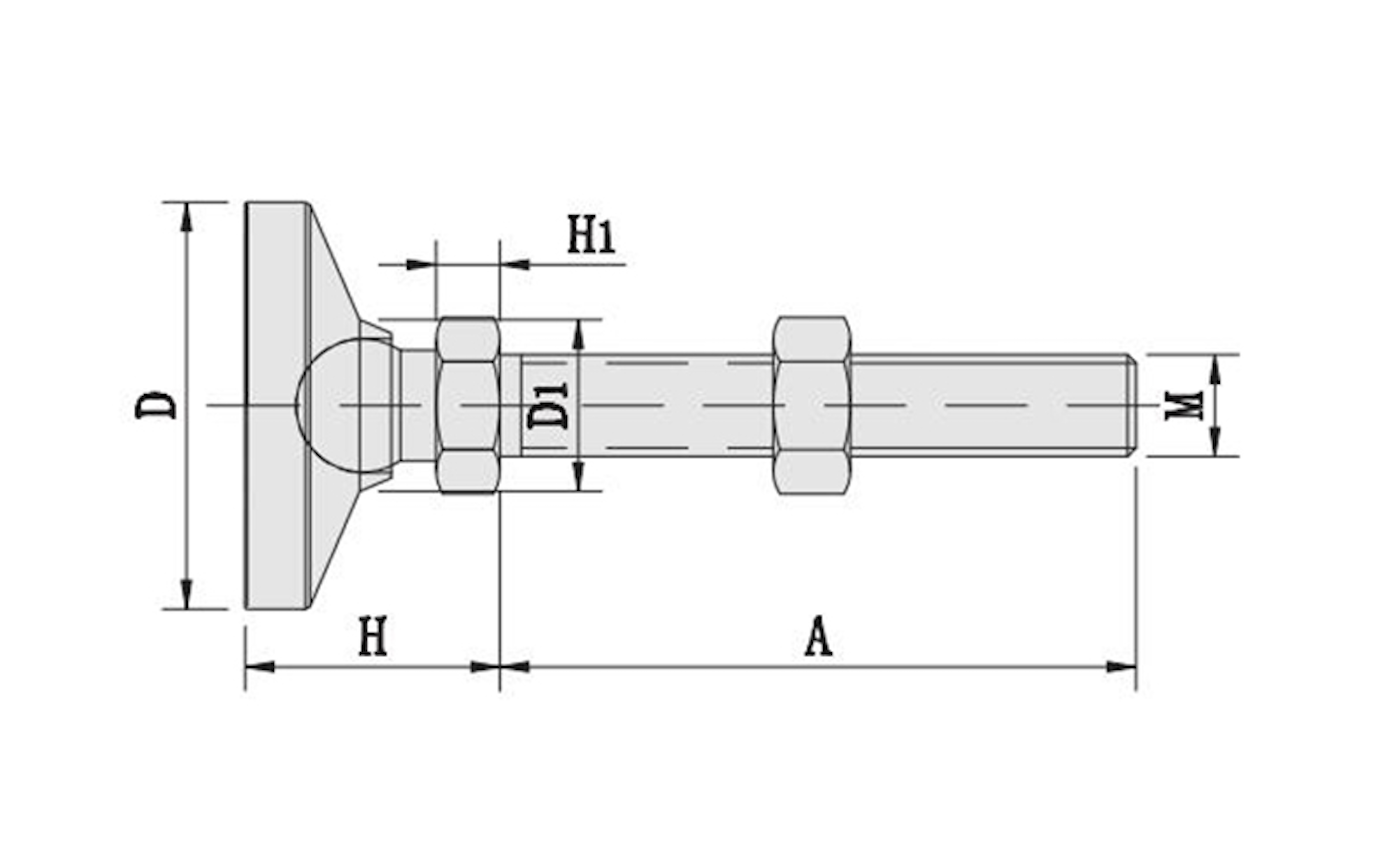

| MODEL NO. | D±2 | H±2 | L±3 | L1±2 | M (UNC) |
V | W | LOAD (KGF) |
|
| CARBON STEEL ( SURFACE GALVANIZED) |
STAINLESS STEEL | ||||||||
| KC-1271M-32-10-75 | KC-1271S-32-10-75 | 32 | 28 | 103 | 75 | 10 | 6 | 17 | 1000 |
| KC-1271M-32-10-100 | KC-1271S-32-10-100 | 32 | 28 | 128 | 100 | 10 | 6 | 17 | 1000 |
| KC-1271M-48-12-70 | KC-1271S-48-12-70 | 48 | 32 | 102 | 70 | 12 | 8 | 19 | 1500 |
| KC-1271M-48-12-100 | KC-1271S-48-12-100 | 48 | 32 | 132 | 100 | 12 | 8 | 19 | 1500 |
| KC-1271M-64-16-70 | KC-1271S-64-16-70 | 64 | 40 | 110 | 70 | 16 | 10 | 24 | 2600 |
| KC-1271M-64-16-100 | KC-1271S-64-16-100 | 64 | 40 | 140 | 100 | 16 | 10 | 24 | 2600 |
