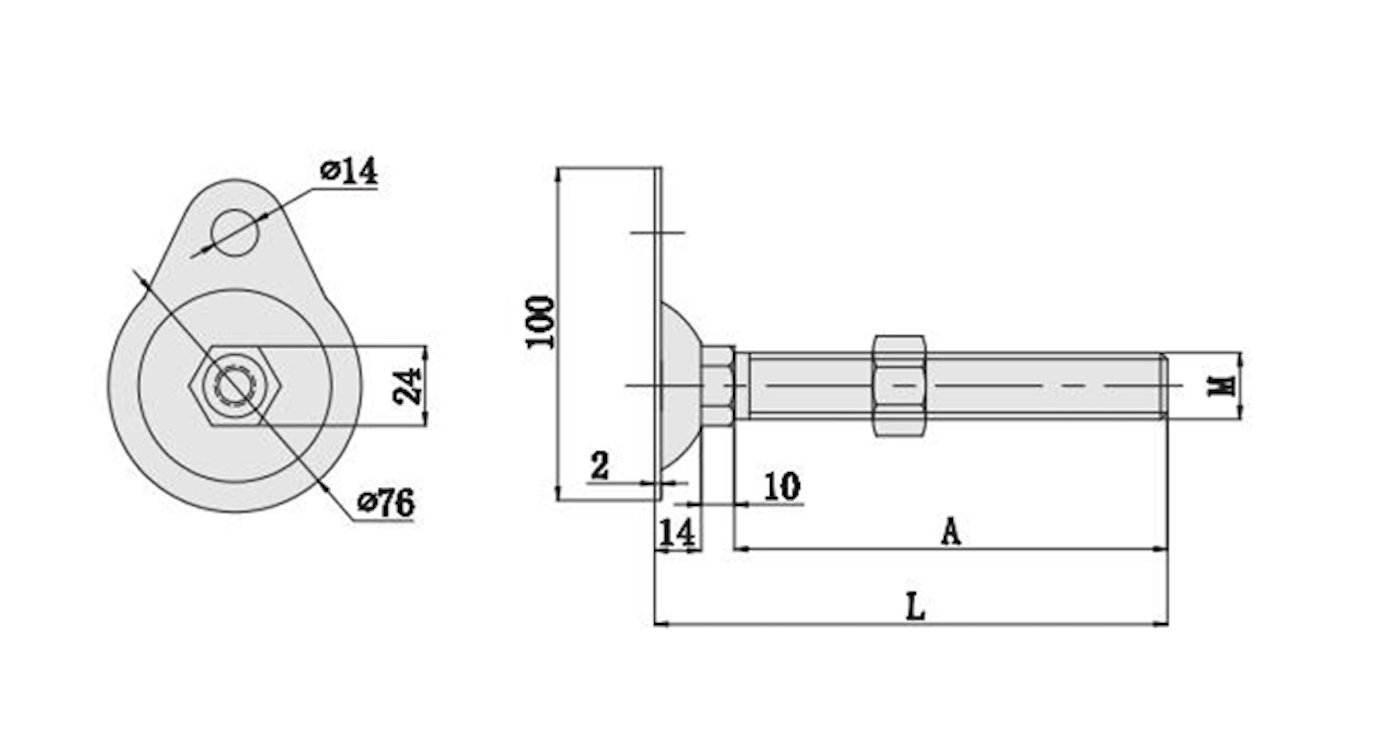

| MODEL NO. | L±3 | L1±2 | M (UNC) |
W | LOAD (KGF) |
| MATERIAL: STAINLESS STEEL | |||||
| KC-1274S-10-75 | 99 | 75 | 10 | 17 | 430 |
| KC-1274S-10-100 | 124 | 100 | 10 | 17 | 430 |
| KC-1274S-12-70 | 94 | 70 | 12 | 19 | 490 |
| KC-1274S-12-100 | 124 | 100 | 12 | 19 | 490 |
| KC-1274S-16-70 | 94 | 70 | 16 | 24 | 590 |
| KC-1274S-16-100 | 124 | 100 | 16 | 24 | 590 |
| KC-1274S-20-100 | 124 | 100 | 20 | 30 | 880 |
| KC-1274S-20-130 | 154 | 130 | 20 | 30 | 880 |
