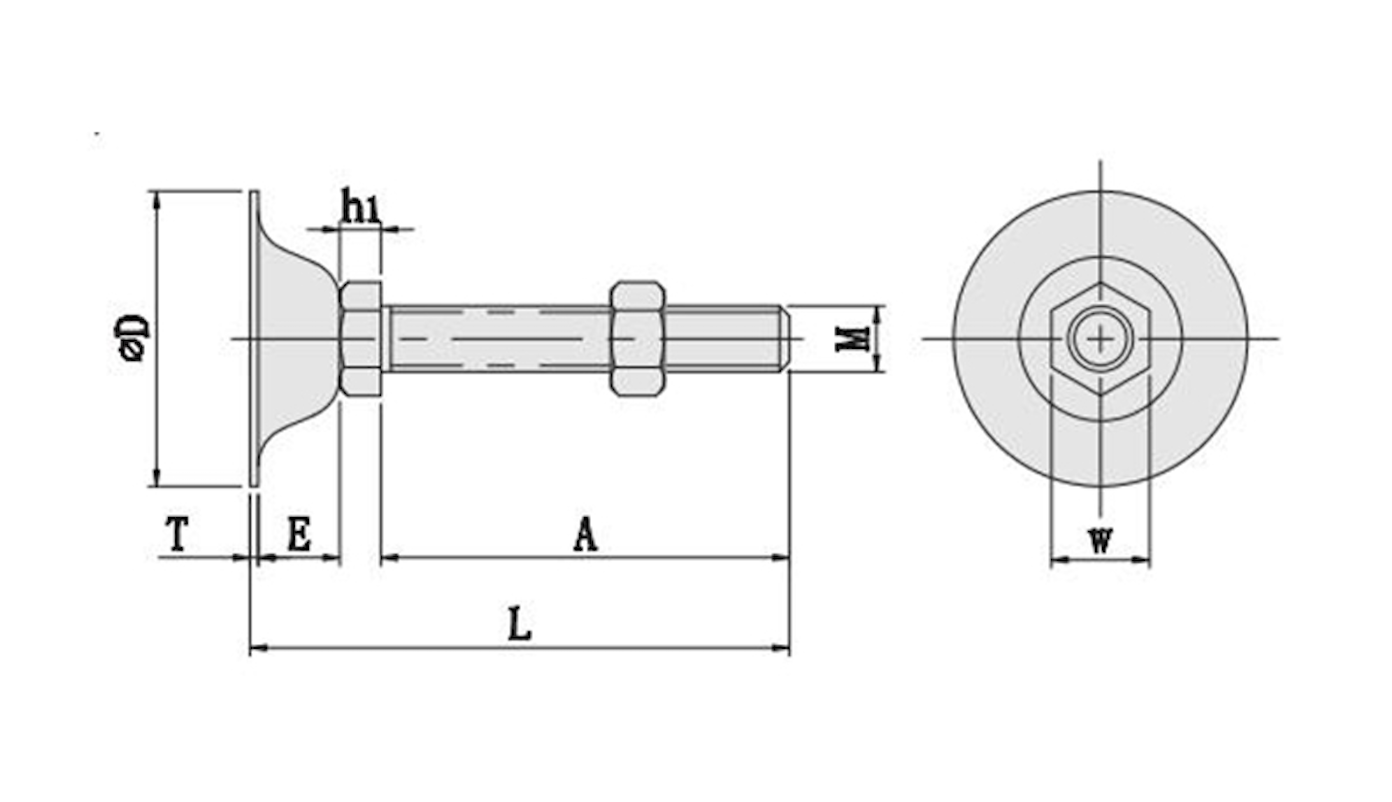

| MODEL NO. | ∅D±2 | L±3 | L1±2 | H±1 | M (UNC) |
M1 | V | W | T | LOAD (KGF) |
|
| CARBON STEEL (CHROME PLATED SURFACE) |
STAINLESS STEEL (GRINDING SURFACE) |
||||||||||
| KC-1275M-8-60 | KC-1275S-8-60 | 38 | 78 | 60 | 12.5 | 8 | 8 | 5.5 | 13 | 1.5 | 400 |
| KC-1275M-10-75 | KC-1275S-10-75 | 38 | 94.5 | 75 | 12.5 | 10 | 8 | 7 | 17 | 1.5 | 400 |
| KC-1275M-10-100 | KC-1275S-10-100 | 38 | 119.5 | 100 | 12.5 | 10 | 8 | 7 | 17 | 1.5 | 400 |
| KC-1275M-12-70 | KC-1275S-12-70 | 60 | 98 | 70 | 20 | 12 | 10 | 8 | 19 | 2 | 500 |
| KC-1275M-12-100 | KC-1275S-12-100 | 60 | 128 | 100 | 20 | 12 | 10 | 8 | 19 | 2 | 500 |
| KC-1275M-16-70 | KC-1275S-16-70 | 75 | 102 | 70 | 22 | 16 | 12 | 10 | 24 | 2 | 600 |
| KC-1275M-16-100 | KC-1275S-16-100 | 75 | 132 | 100 | 22 | 16 | 12 | 10 | 24 | 2 | 600 |
| KC-1275M-20-100 | KC-1275S-20-100 | 75 | 135 | 100 | 22 | 20 | 12 | 13 | 30 | 2 | 900 |
| KC-1275M-20-130 | KC-1275S-20-130 | 75 | 165 | 130 | 22 | 20 | 12 | 13 | 30 | 2 | 900 |
