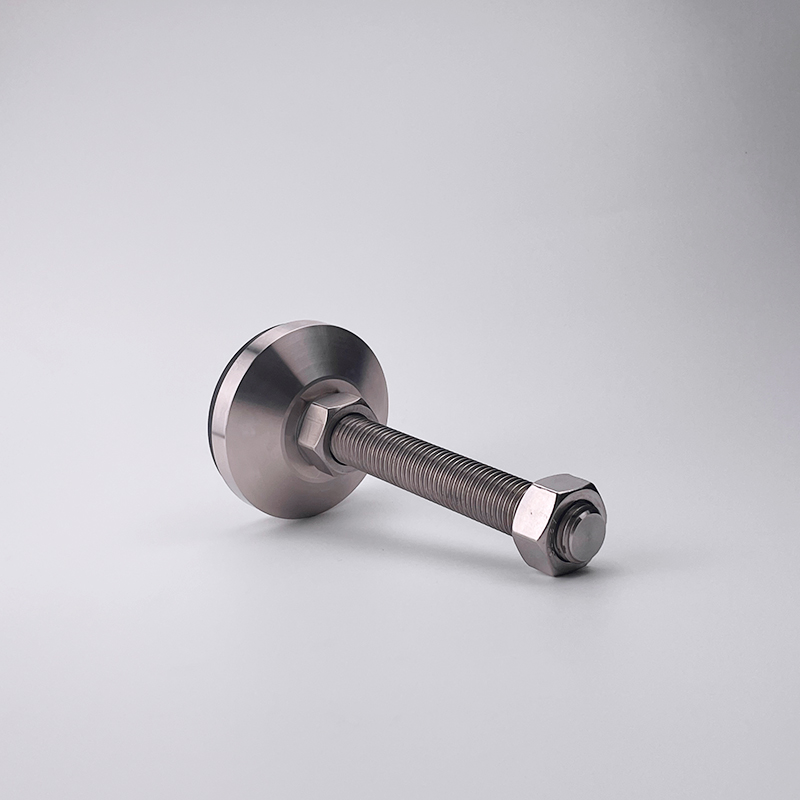

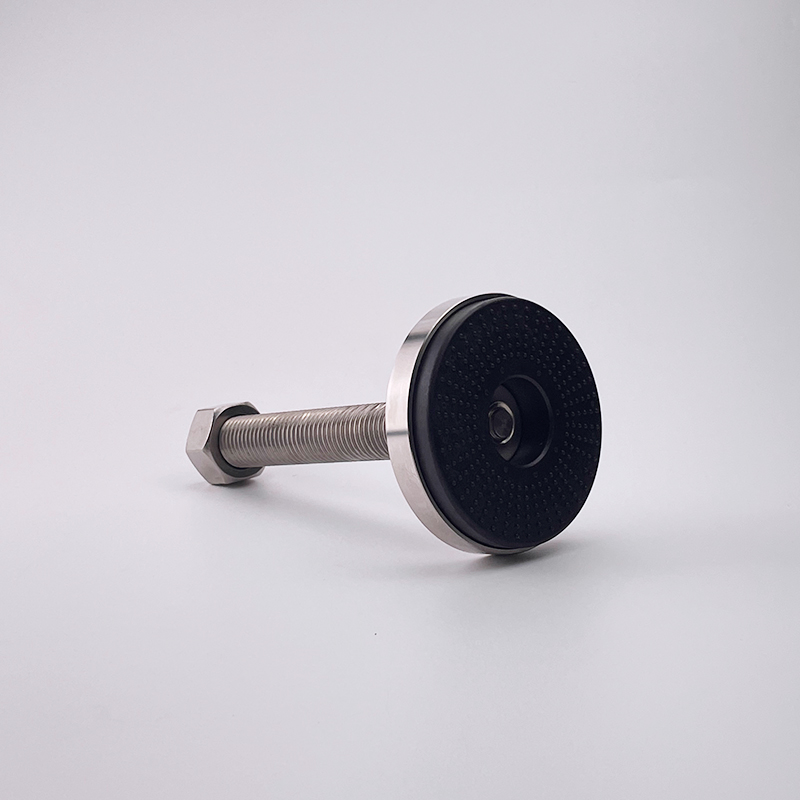

The KC-1276S series equipment leveling feet are designed to provide stable and adjustable support for various industrial applications. With diameters ranging from 58mm to 98mm, these leveling feet ensure a secure foundation for equipment, offering load capacities of up to 3000 KGF. The series features different thread sizes (M12 to M24) to accommodate varying mounting requirements.
Multiple Size Options for Versatile Applications
● Available in three base diameters: 58mm, 78mm, and 98mm.
● Adjustable heights range from 70mm to 150mm depending on the model.
High Load Capacity for Heavy-Duty Equipment
● Supports loads from 600 KGF to 3000 KGF, depending on model specifications.
● Strong structural design ensures stability under heavy loads.
Thread Variants for Secure Mounting
● Thread sizes range from M12 to M24, providing compatibility with various mounting systems.
● Available in UNC threading, ensuring secure fastening.
Precise Height Adjustment
● Fine height adjustment allows for leveling equipment on uneven surfaces.
● Different L1 (mounting length) options: 70mm, 100mm, 130mm, and 150mm.

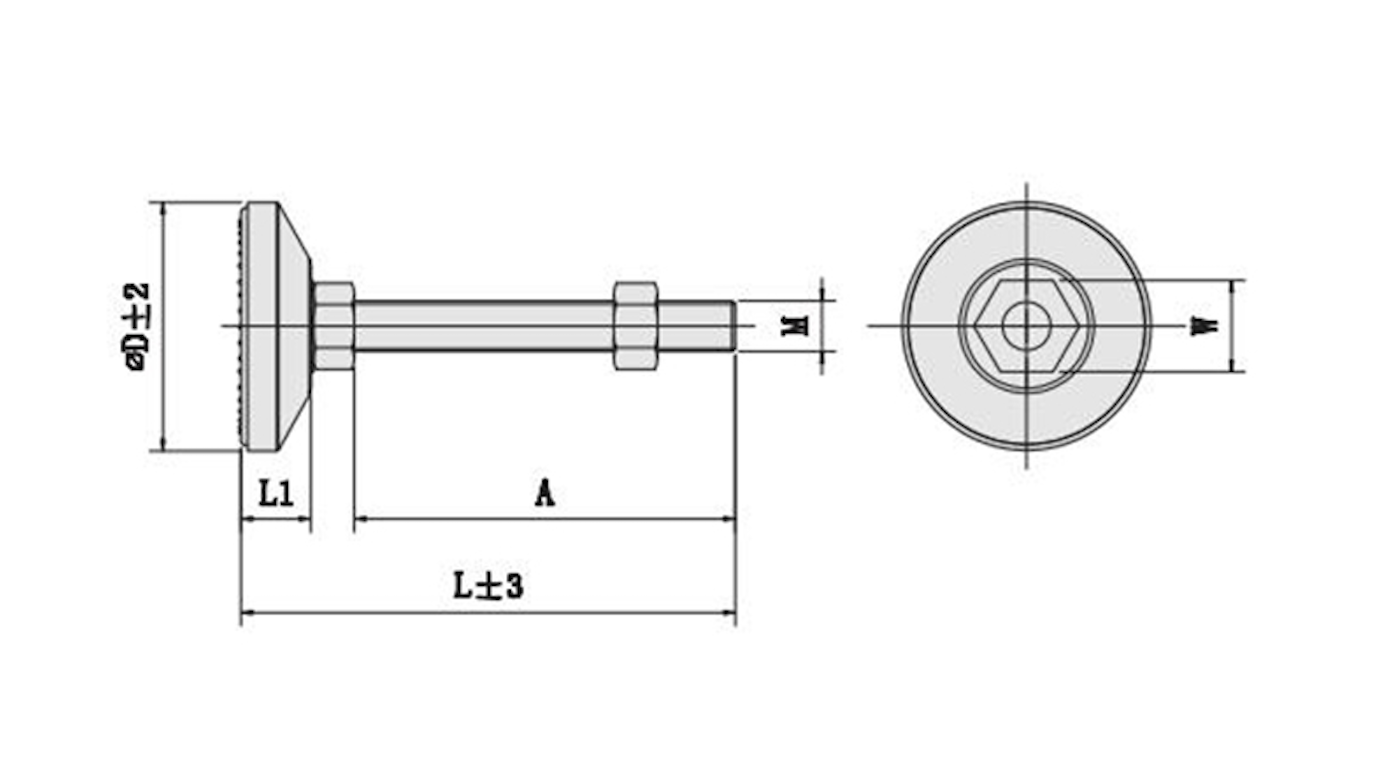

| MODEL NO. | D±2 | L±3 | L1±2 | H±1 | M (UNC) |
W | LOAD (KGF) |
| KC-1276S-58-12-70 | 58 | 101 | 70 | 20 | 12 | 19 | 600 |
| KC-1276S-58-12-100 | 58 | 131 | 100 | 20 | 12 | 19 | 600 |
| KC-1276S-58-16-70 | 58 | 104 | 70 | 20 | 16 | 24 | 1000 |
| KC-1276S-58-16-100 | 58 | 134 | 100 | 20 | 16 | 24 | 1000 |
| KC-1276S-78-12-70 | 78 | 103 | 70 | 22 | 12 | 19 | 600 |
| KC-1276S-78-12-100 | 78 | 133 | 100 | 22 | 12 | 19 | 600 |
| KC-1276S-78-16-70 | 78 | 106 | 70 | 22 | 16 | 24 | 1000 |
| KC-1276S-78-16-100 | 78 | 136 | 100 | 22 | 16 | 24 | 1000 |
| KC-1276S-78-20-100 | 78 | 139 | 100 | 22 | 20 | 30 | 2000 |
| KC-1276S-78-20-130 | 78 | 169 | 130 | 22 | 20 | 30 | 2000 |
| KC-1276S-98-16-70 | 98 | 111 | 70 | 27 | 16 | 24 | 1000 |
| KC-1276S-98-16-100 | 98 | 141 | 100 | 27 | 16 | 24 | 1000 |
| KC-1276S-98-20-100 | 98 | 144 | 100 | 27 | 20 | 30 | 2000 |
| KC-1276S-98-20-130 | 98 | 174 | 130 | 27 | 20 | 30 | 2000 |
| KC-1276S-98-24-100 | 98 | 146 | 100 | 27 | 24 | 36 | 3000 |
| KC-1276S-98-24-150 | 98 | 196 | 150 | 27 | 24 | 36 | 3000 |
