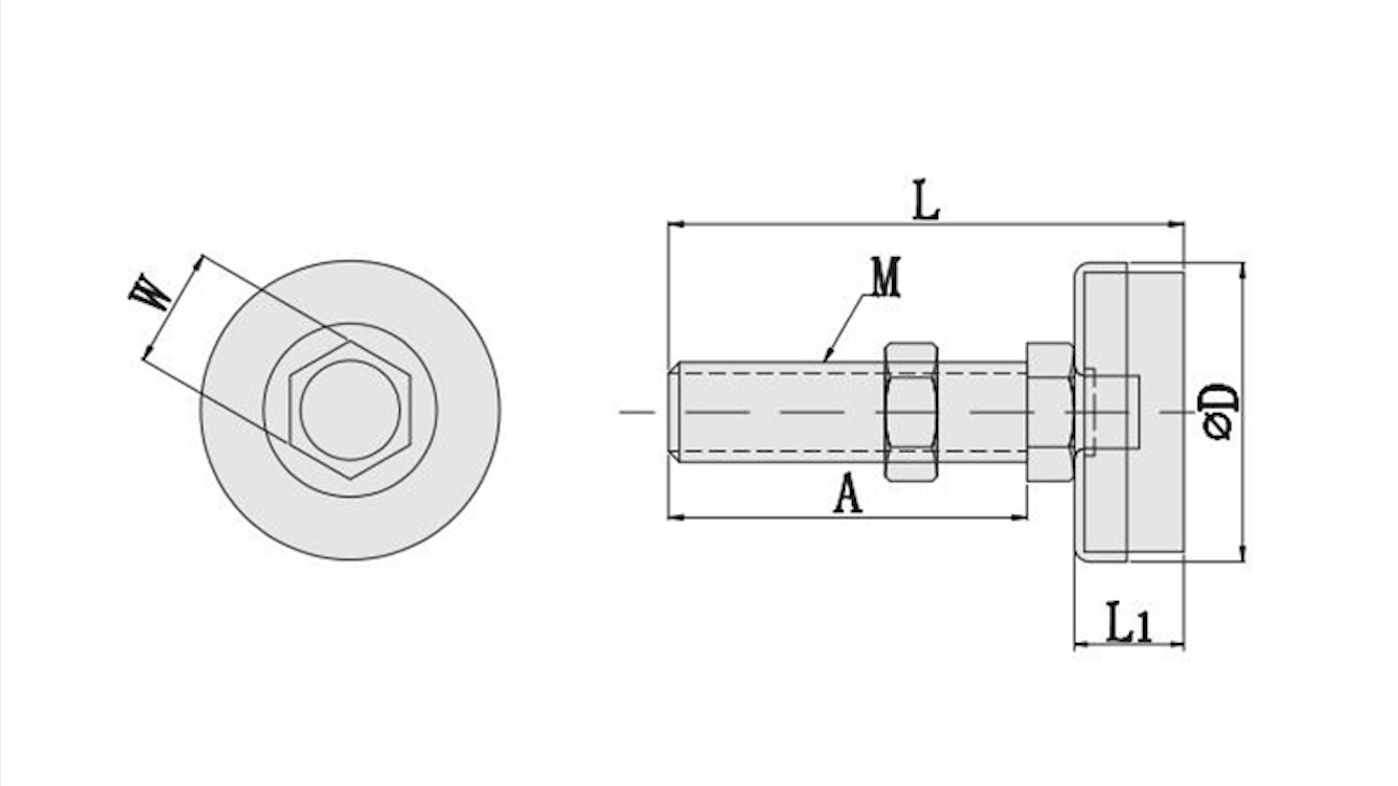

| MODEL NO. | D±2 | L±3 | L1±2 | H±1 | M (UNC) |
W | LOAD (KGF) |
| SUS304+RUBBER | |||||||
| KC-1280S-20-130 | 60 | 160 | 130 | 16 | 20 | 30 | 800 |
| KC-1280S-20-100 | 60 | 130 | 100 | 16 | 20 | 30 | 800 |
| KC-1280S-16-100 | 60 | 127 | 100 | 16 | 16 | 24 | 600 |
| KC-1280S-16-70 | 60 | 97 | 70 | 16 | 16 | 24 | 600 |
| KC-1280S-12-100 | 50 | 124 | 100 | 15 | 12 | 19 | 500 |
| KC-1280S-12-70 | 50 | 94 | 70 | 15 | 12 | 19 | 500 |
| KC-1280S-10-75 | 40 | 95 | 75 | 12 | 10 | 17 | 300 |
| KC-1280S-10-50 | 40 | 70 | 50 | 12 | 10 | 17 | 300 |
| KC-1280S-8-60 | 40 | 78.5 | 60 | 12 | 8 | 13 | 200 |
