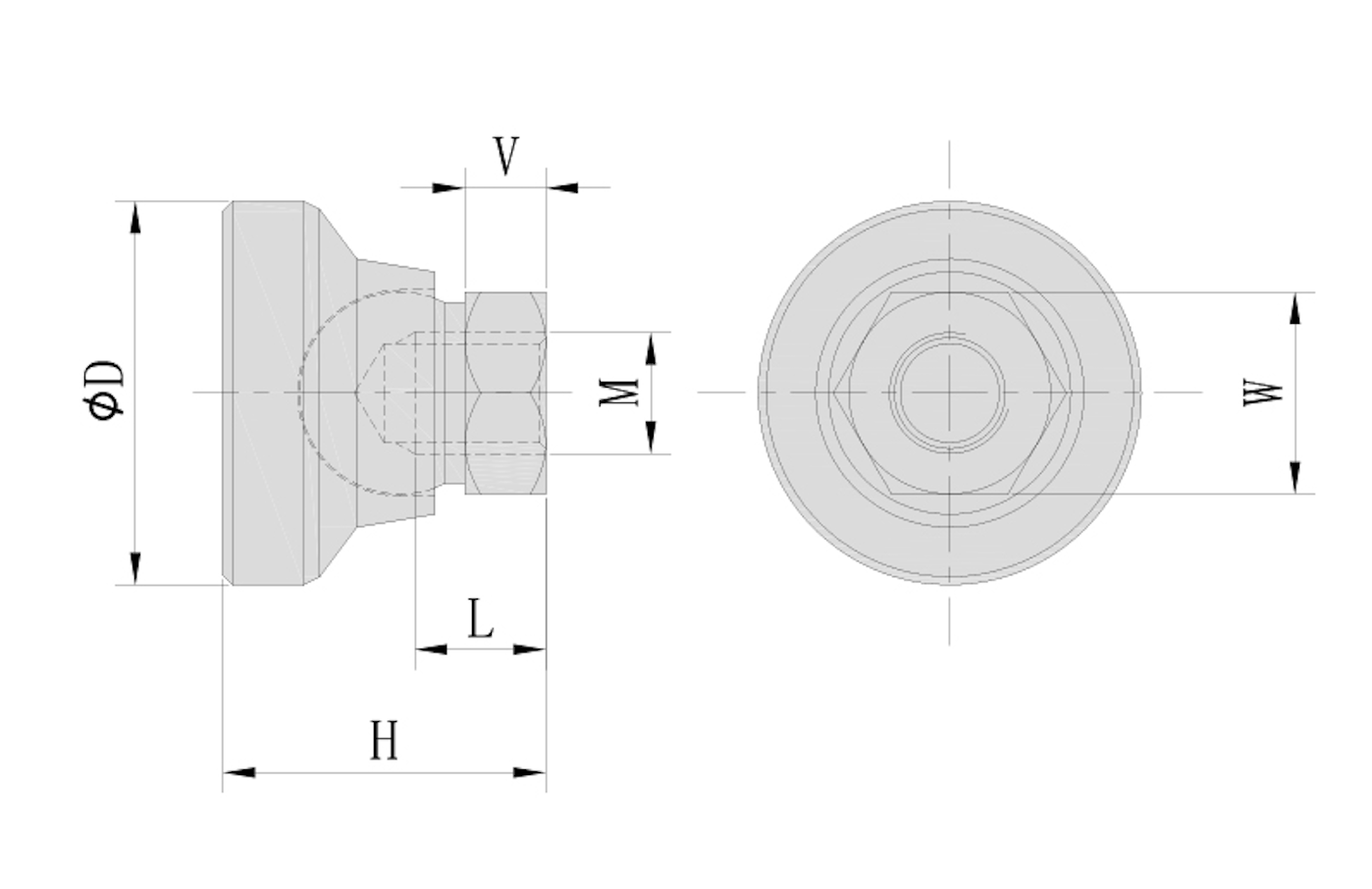

| MODEL NO. | D±2 | H±2 | L+0.5 | M (UNC) |
V | W | LOAD (KGF) |
|
| CARBON STEEL ( SURFACE GALVANIZED) |
STAINLESS STEEL | |||||||
| KC-210M-19-M6 | KC-210S-19-M6 | 19 | 16 | 6.5 | 6 | 4 | 10 | 60 |
| KC-210M-25-M8 | KC-210S-25-M8 | 25 | 21 | 10 | 8 | 8 | 13 | 120 |
| KC-210M-32-M10 | KC-210S-32-M10 | 32 | 25 | 12 | 10 | 10 | 17 | 160 |
| KC-210M-48-M12 | KC-210S-48-M12 | 48 | 31 | 15 | 12 | 10 | 19 | 300 |
| KC-210M-64-M16 | KC-210S-64-M16 | 64 | 34 | 15 | 16 | 10 | 24 | 400 |
