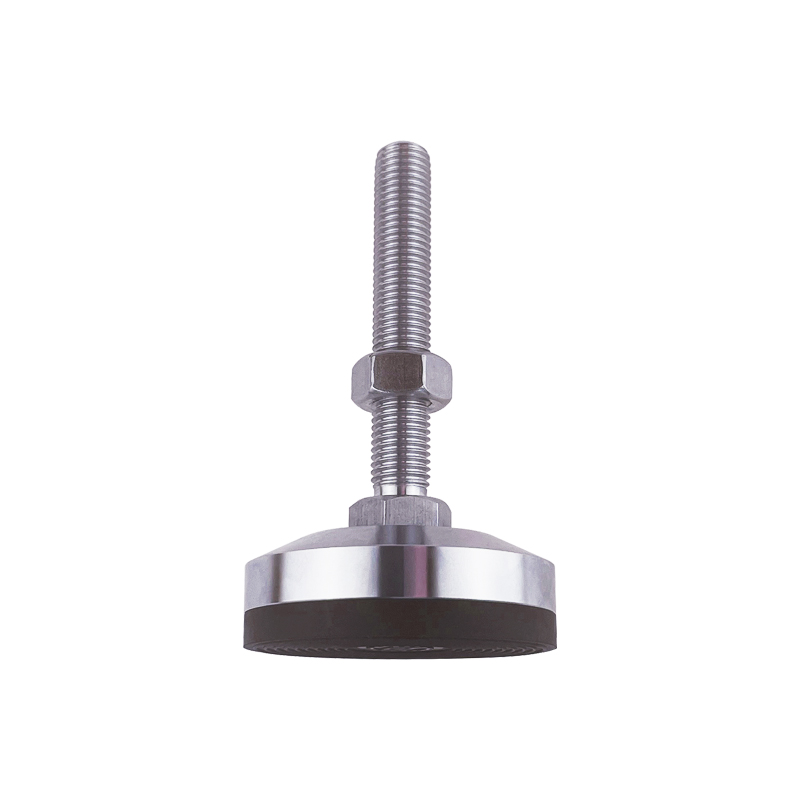

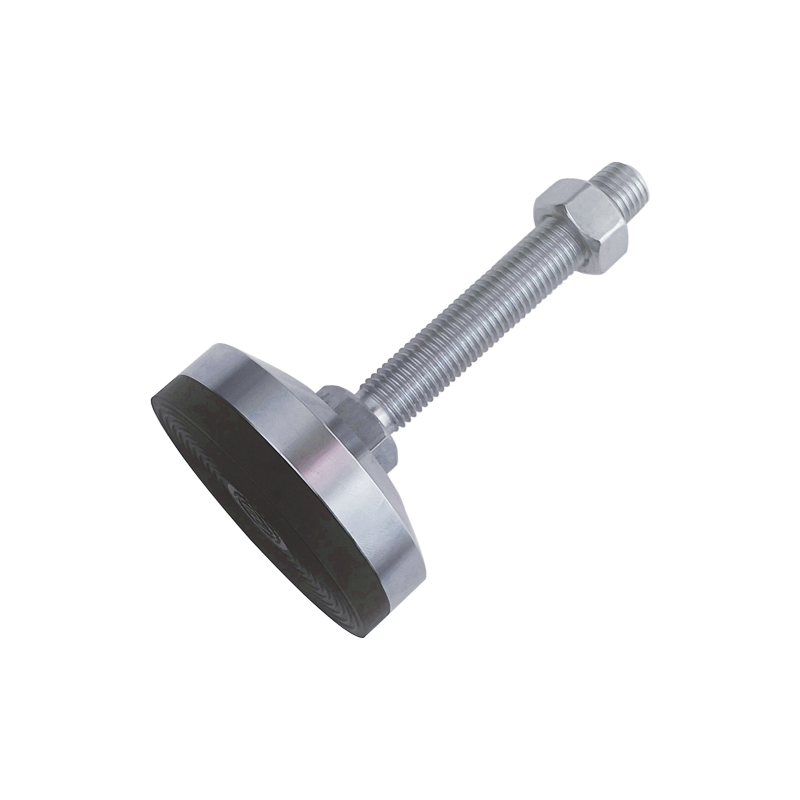

Manywell KC-2206S equipment leveling feet are designed to provide stable support and leveling for various equipment, ensuring proper balance and functionality in different industrial settings. These leveling feet are available in a variety of sizes, catering to different load capacities and adjustment requirements. They are constructed with high-quality materials to withstand heavy loads and are equipped with UNC threads for easy installation.
Adjustable Heights: Available in multiple height options, providing flexibility for different equipment setups.
Load Capacity: With load capacities ranging from 350 KGF to 1000 KGF, these feet are suitable for a wide range of applications.
Durability: The feet are designed to support heavy equipment and maintain stability even under significant load.
Multiple Sizes: Offering various diameters (40mm, 50mm, 60mm, 80mm, 100mm) and thread sizes, they can accommodate diverse requirements for different equipment.
Thread Options: The feet come with UNC threads, ensuring secure attachment to equipment.
Ideal for use in industrial environments where precise leveling is essential, the KC-2206S equipment leveling feet are a reliable solution for enhancing the stability and functionality of machinery and equipment.

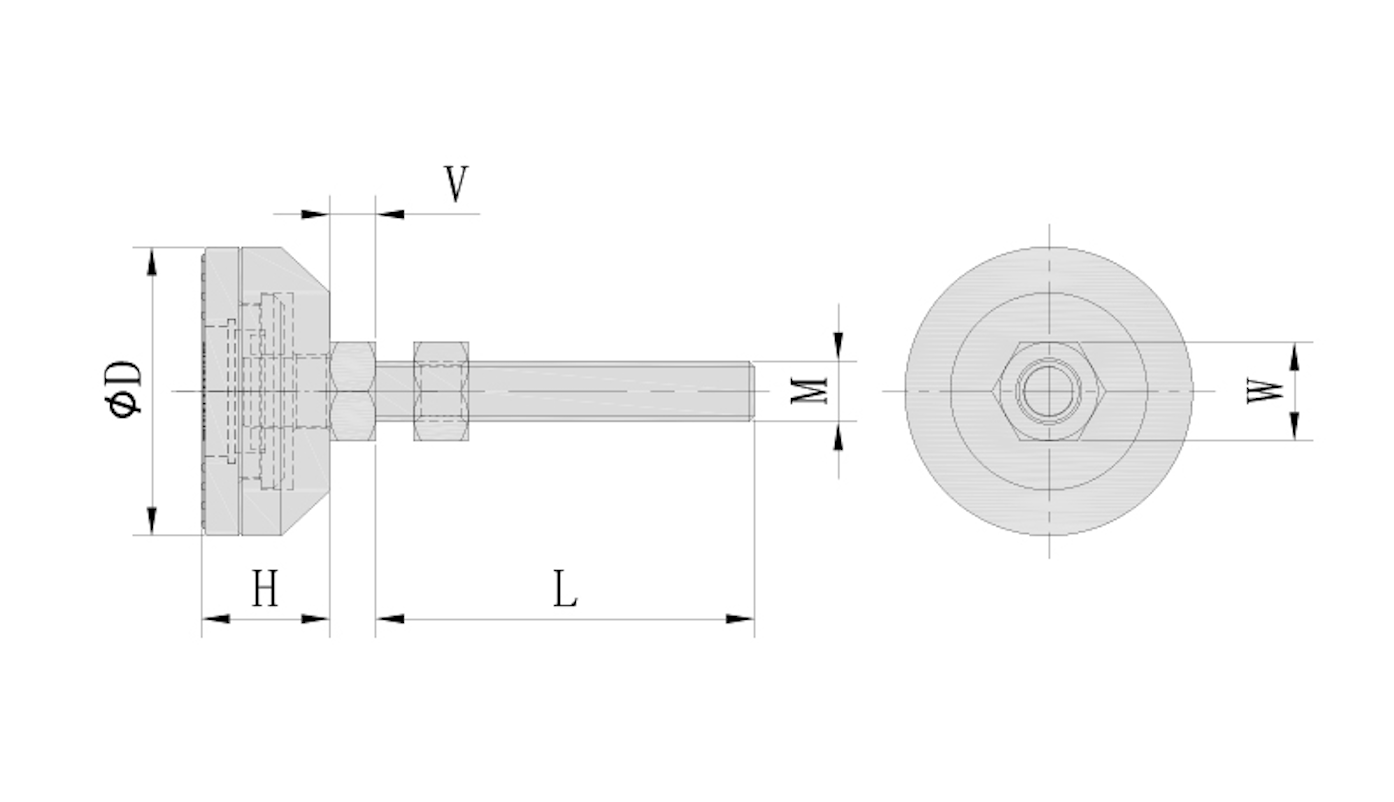

| MODEL NO. | D±2 | H±1 | L±2 | M (UNC) |
V | LOAD (KGF) |
| KC-2206S-40-8-50 | 40 | 17 | 50 | 8 | 6 | 350 |
| KC-2206S-40-8-75 | 40 | 17 | 75 | 8 | 6 | 350 |
| KC-2206S-40-12-75 | 40 | 17 | 75 | 12 | 8 | 500 |
| KC-2206S-40-12-100 | 40 | 17 | 100 | 12 | 8 | 500 |
| KC-2206S-50-8-50 | 50 | 22 | 50 | 8 | 6 | 350 |
| KC-2206S-50-8-75 | 50 | 22 | 75 | 8 | 6 | 350 |
| KC-2206S-50-10-50 | 50 | 22 | 50 | 10 | 7 | 350 |
| KC-2206S-50-10-75 | 50 | 22 | 75 | 10 | 7 | 350 |
| KC-2206S-50-12-75 | 50 | 22 | 75 | 12 | 8 | 500 |
| KC-2206S-50-12-100 | 50 | 22 | 100 | 12 | 8 | 500 |
| KC-2206S-60-12-75 | 60 | 24 | 75 | 12 | 8 | 650 |
| KC-2206S-60-12-100 | 60 | 24 | 100 | 12 | 8 | 650 |
| KC-2206S-60-16-75 | 60 | 24 | 75 | 16 | 10 | 750 |
| KC-2206S-60-16-100 | 60 | 24 | 100 | 16 | 10 | 750 |
| KC-2206S-60-16-150 | 60 | 24 | 150 | 16 | 10 | 750 |
| KC-2206S-80-16-100 | 80 | 27 | 100 | 16 | 10 | 850 |
| KC-2206S-80-16-150 | 80 | 27 | 150 | 16 | 10 | 850 |
| KC-2206S-80-20-100 | 80 | 27 | 100 | 20 | 13 | 950 |
| KC-2206S-80-20-150 | 80 | 27 | 150 | 20 | 13 | 950 |
| KC-2206S-100-16-100 | 100 | 32 | 100 | 16 | 10 | 850 |
| KC-2206S-100-16-150 | 100 | 32 | 150 | 16 | 10 | 850 |
| KC-2206S-100-20-100 | 100 | 32 | 100 | 20 | 13 | 950 |
| KC-2206S-100-20-150 | 100 | 32 | 150 | 20 | 13 | 950 |
| KC-2206S-100-24-100 | 100 | 32 | 100 | 24 | 16 | 1000 |
| KC-2206S-100-24-150 | 100 | 32 | 150 | 24 | 16 | 1000 |
