Equipment Leveling Feet

KC-2241S Equipment Leveling Feet

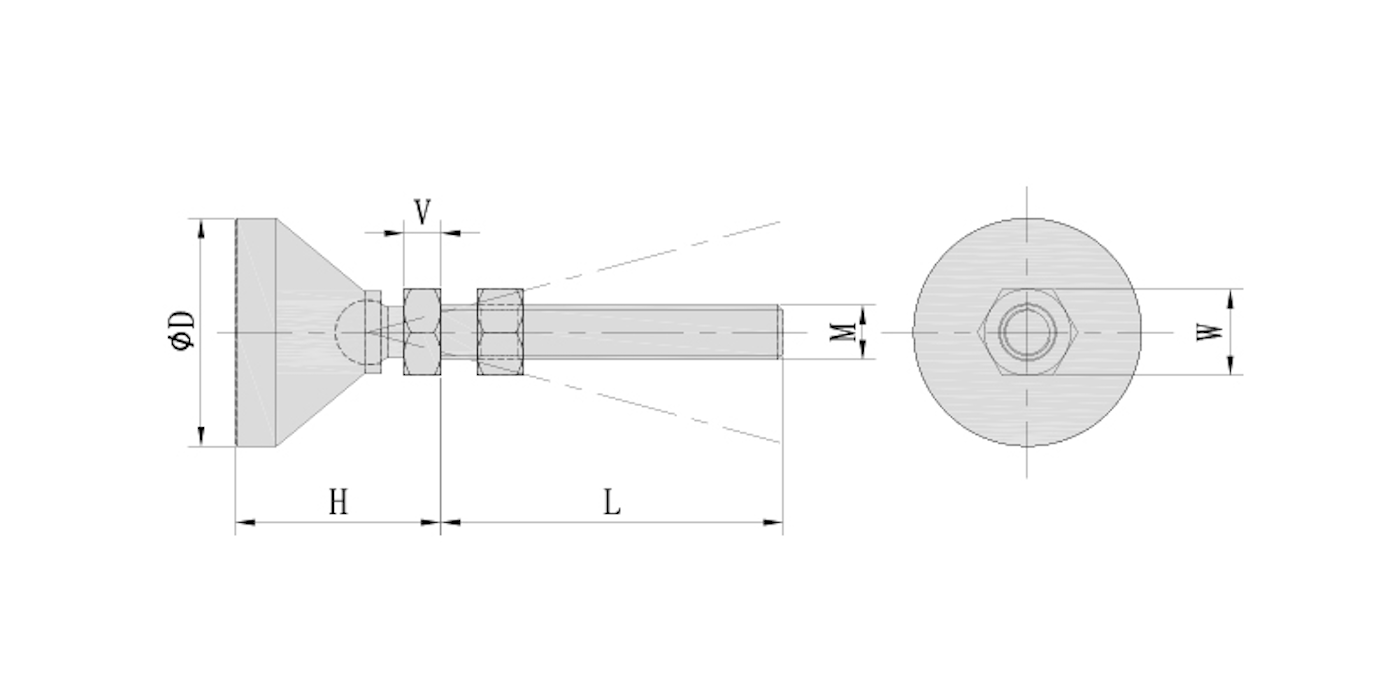

Technical Drawing



Laboratory vibration control



Datasheet

MODEL NO. D±2 H±2 L±2 M
(UNC)
V W LOAD
(KGF)
KC-2241S-50-12-75 50 45 75 12 8 19 300
KC-2241S-50-12-100 50 45 100 12 8 19 300
KC-2241S-50-16-100 50 45 100 16 10 24 400
KC-2241S-50-16-150 50 45 150 16 10 24 400
KC-2241S-60-16-100 60 50 100 16 10 24 500
KC-2241S-60-16-150 60 50 150 16 10 24 500
KC-2241S-75-16-100 75 55 100 16 10 24 1000
KC-2241S-75-16-150 75 55 150 16 10 24 1000
KC-2241S-75-20-100 75 55 100 20 13 30 1500
KC-2241S-75-20-150 75 55 150 20 13 30 1500
