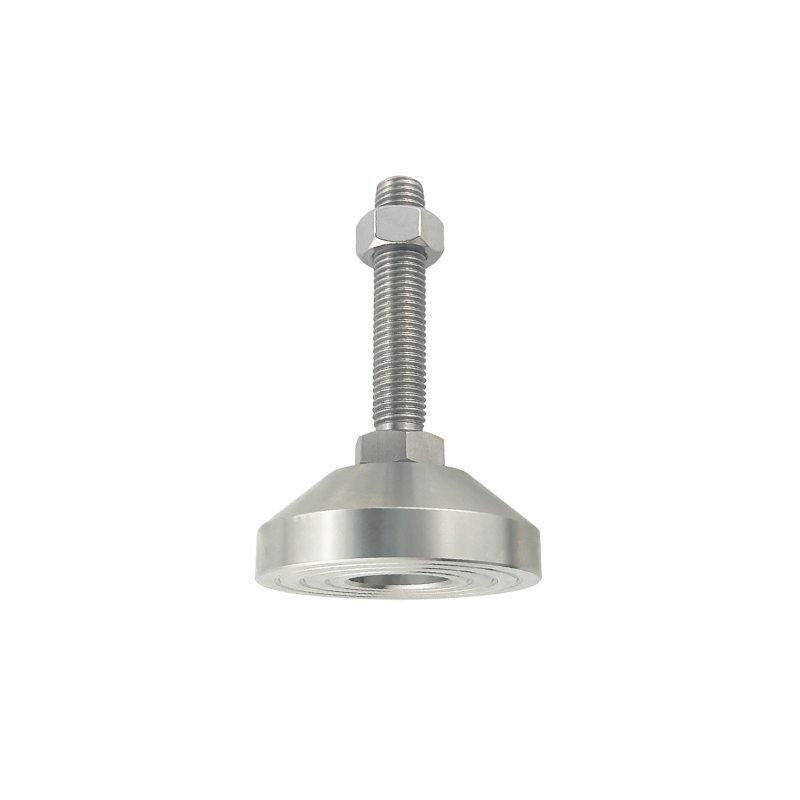

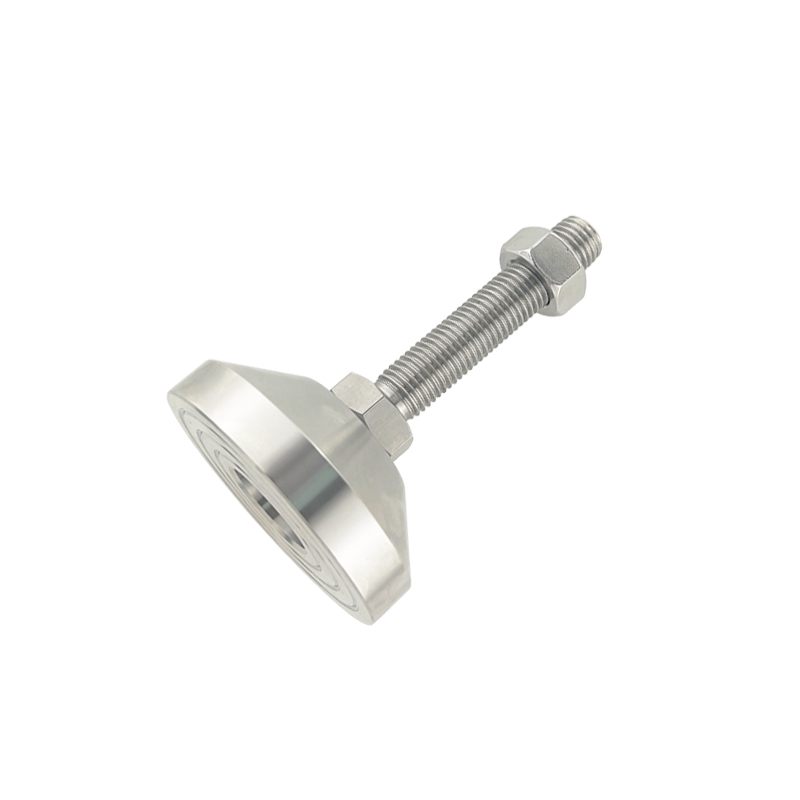

KC-2251S Equipment Leveling Feet

KC-2251S Equipment Leveling Feet



The KC-2251S equipment leveling feet are designed to provide superior stability and load-bearing capacity for equipment and ensure durability and reliable performance across various applications.



Key Features



Adjustable Height: Available in multiple height options (100mm and 150mm) to accommodate various equipment leveling needs.
High Load Capacity: Supports heavy machinery with load capacities ranging from 1500 KGF to 3500 KGF, offering secure and stable support.
Thread Sizes: Available in M16, M20, and M24 thread sizes to fit different equipment specifications.



Application of Manywell KC-2251S Equipment Leveling Feet



Industrial Machinery: Ideal for heavy-duty equipment such as CNC machines, conveyor systems, and manufacturing lines that require precise leveling and vibration control.

Medical Equipment: Provides stable support for sensitive medical devices, ensuring accurate operation and reducing vibration interference.

Food Processing Equipment: Ensures stability and hygiene compliance for food-grade machinery with easy height adjustment and secure footing.

Electronic Assembly Lines: Reduces vibration in delicate electronic manufacturing processes, ensuring precision and operational efficiency.

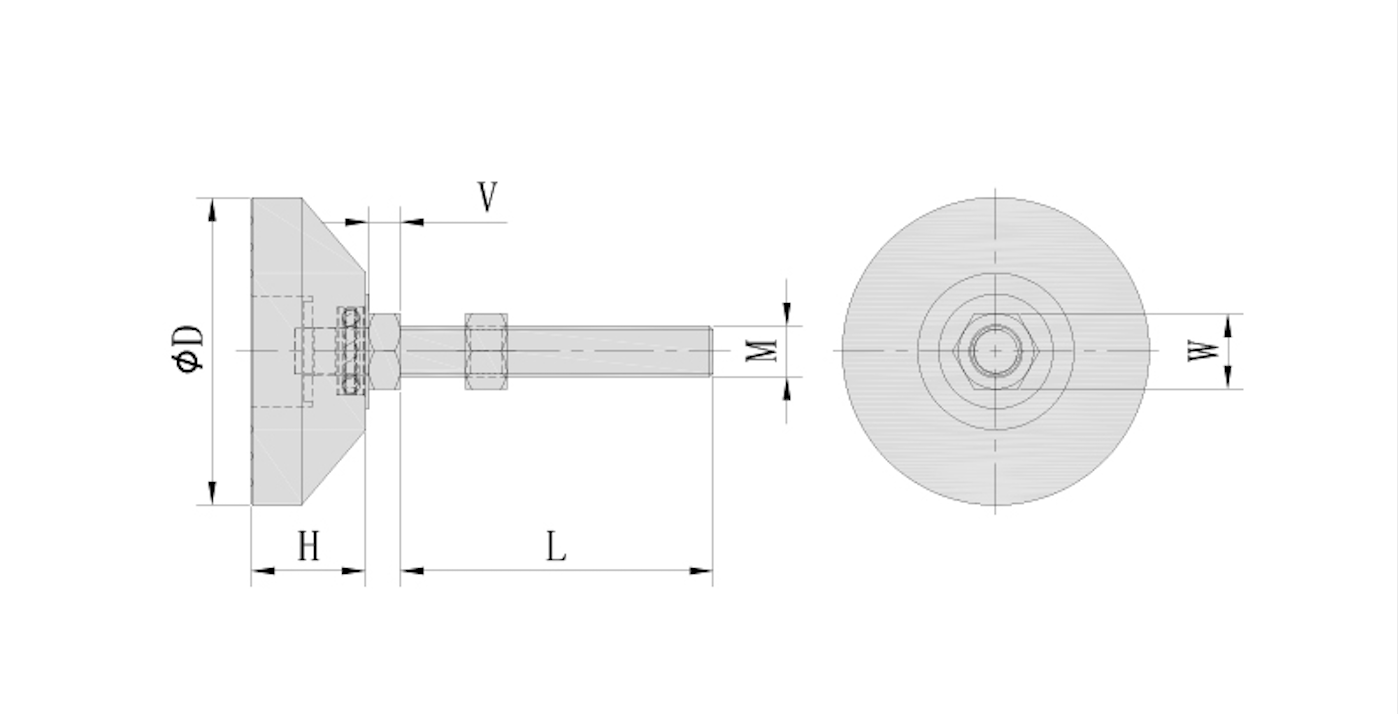

Technical Drawing



Medical device vibration dampening



Datasheet



MODEL NO. D±2 L±2 H±2 M
(UNC)
V W LOAD
(KGF)
KC-2251S-60-16-100 60 100 28 16 10 24 1500
KC-2251S-60-16-150 60 150 28 16 10 24 1500
KC-2251S-80-16-100 80 100 36.5 16 10 24 1500
KC-2251S-80-16-150 80 150 36.5 16 10 24 1500
KC-2251S-80-20-100 80 100 36.5 16 13 30 1500
KC-2251S-80-20-150 80 150 36.5 16 13 30 1500
KC-2251S-100-16-100 100 100 36.5 16 10 24 1500
KC-2251S-100-16-150 100 150 36.5 16 10 24 1500
KC-2251S-100-20-100 100 100 36.5 20 13 30 2000
KC-2251S-100-20-150 100 150 36.5 20 13 30 2000
KC-2251S-100-24-100 100 100 36.5 24 16 36 3500
KC-2251S-100-24-150 100 150 36.5 24 16 36 3500
