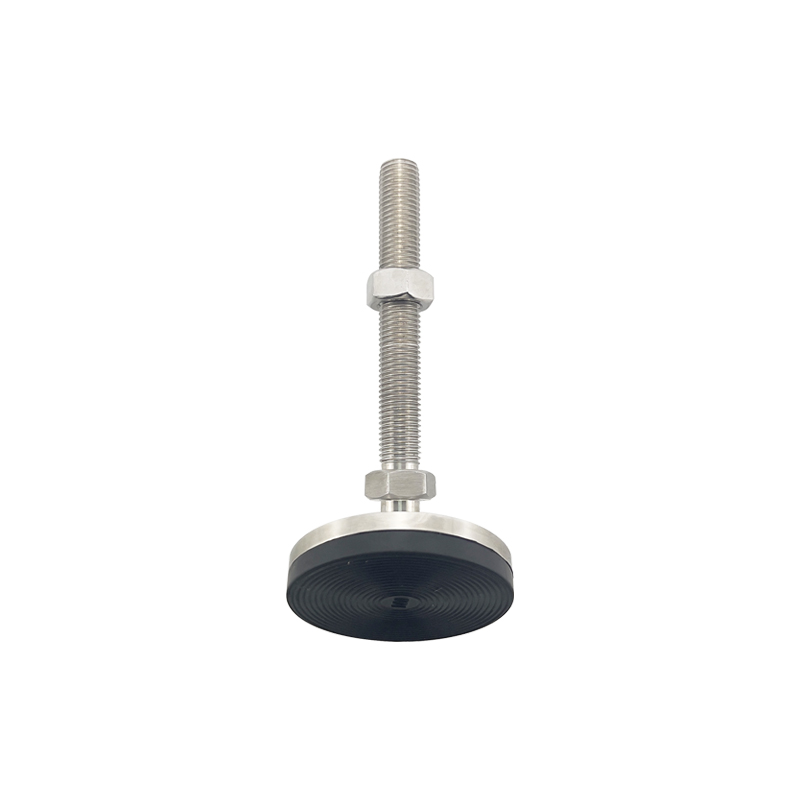

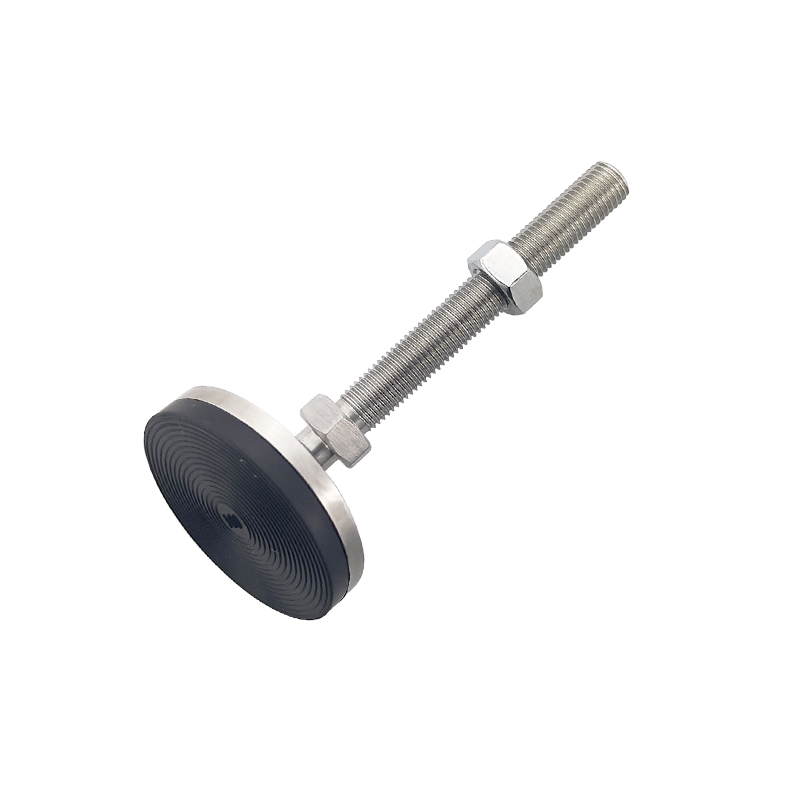

KC-2271S Equipment Leveling Feet

KC-2271S Equipment Leveling Feet



The KC-2271S series equipment leveling feet are designed to provide reliable support, precise leveling, and enhanced stability for heavy machinery and industrial equipment. With their robust construction and versatile design, they are ideal for a variety of applications, including manufacturing plants, automation systems, and other heavy-duty environments.



Key Features



Heavy Load Capacity

Engineered to handle substantial loads, with models supporting up to 2000 KGF or 4000 KGF, making them suitable for heavy industrial machinery and large-scale equipment.

Adjustable Height for Precision Leveling

Available in 100mm and 150mm length options, these feet allow for precise height adjustments, ensuring equipment remains level and stable on uneven surfaces.

Thread Size Options

Choose between M20 and M24 thread diameters to accommodate different equipment specifications and ensure secure attachment.

Enhanced Stability & Vibration Reduction

Designed with a wide base (100mm diameter) for increased surface contact, improving stability and minimizing vibrations during operation.

Durable & Corrosion-Resistant Construction

Manufactured from high-quality materials to withstand harsh environments, resist wear and corrosion, and ensure long-lasting performance.

Versatile Applications

Ideal for use in various industries, including:
● CNC machines and automated equipment
● Medical and laboratory devices
● Assembly lines and production facilities
● Electronics and precision instruments

Easy Installation & Adjustment: The user-friendly design allows for quick and simple installation, while the adjustable threaded stem provides flexibility to achieve optimal leveling and support.

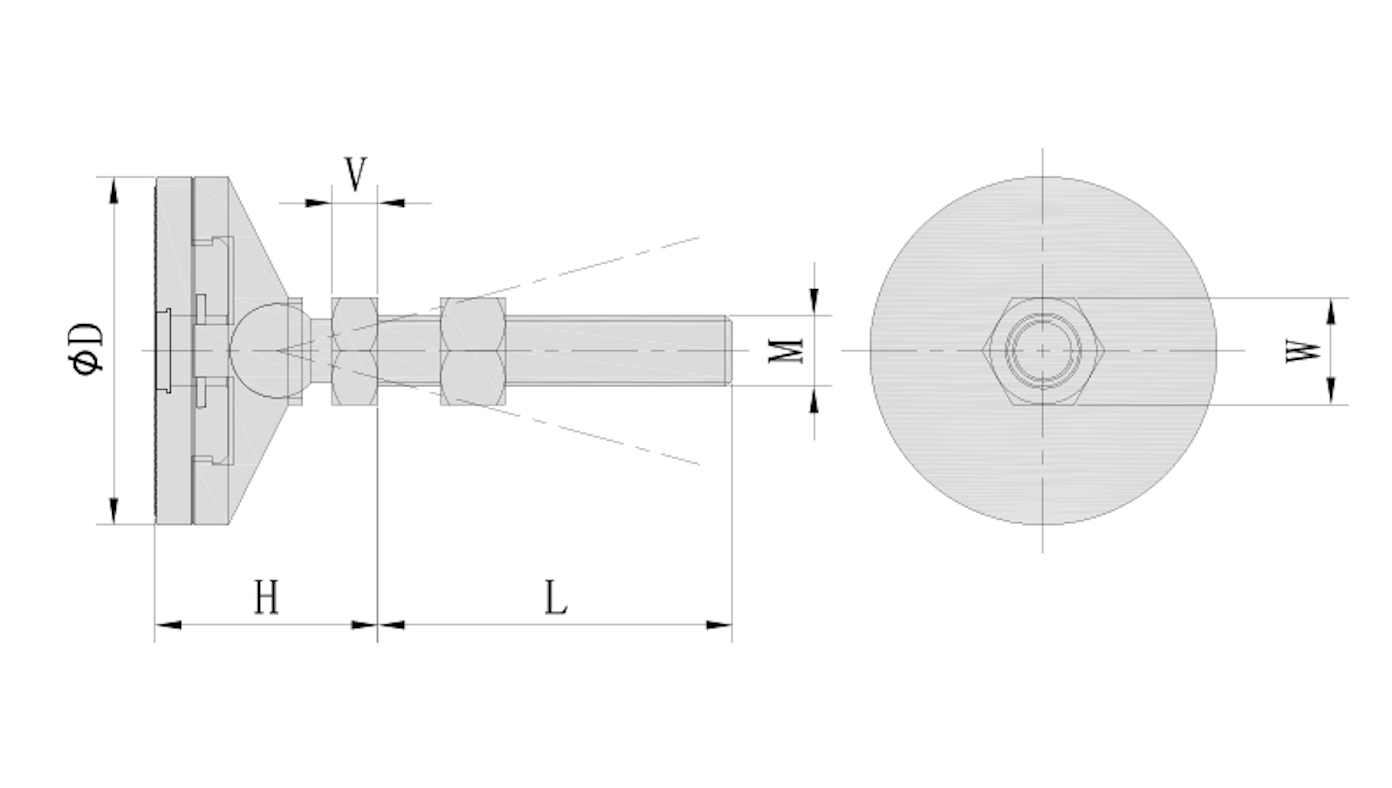

Technical Drawing



High-tech machinery vibration reduction



Datasheet



MODEL NO. D±2 L±2 H±2 M
(UNC)
V W LOAD
(KGF)
KC-2271S-100-20-100 100 100 62 20 13 30 2000
KC-2271S-100-20-150 100 150 62 20 13 30 2000
KC-2271S-100-24-100 100 100 62 24 16 36 4000
KC-2271S-100-24-150 100 150 62 24 16 36 4000
