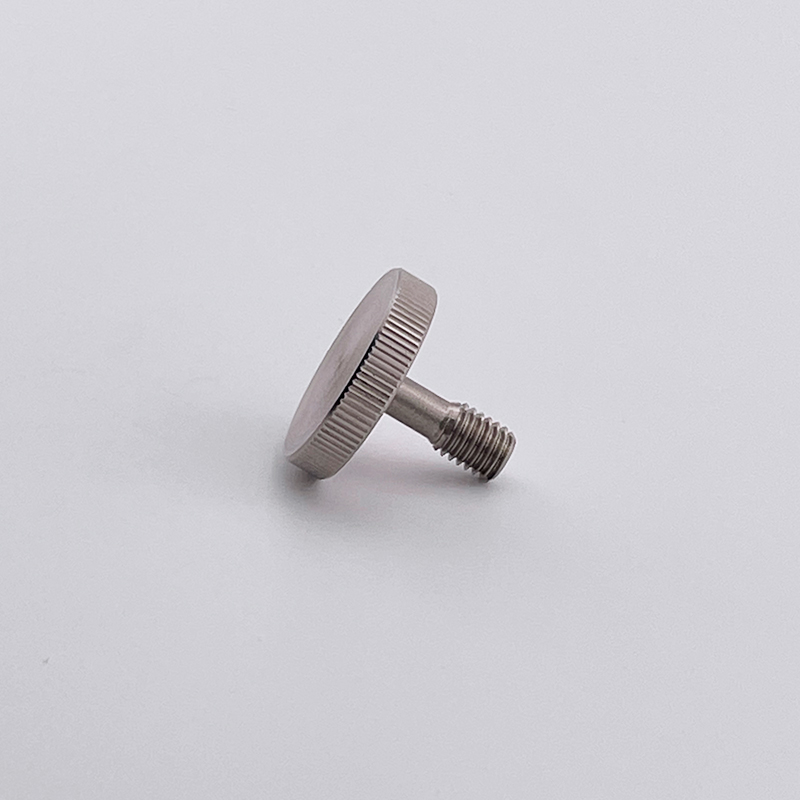

P-1009S Equipment Knobs

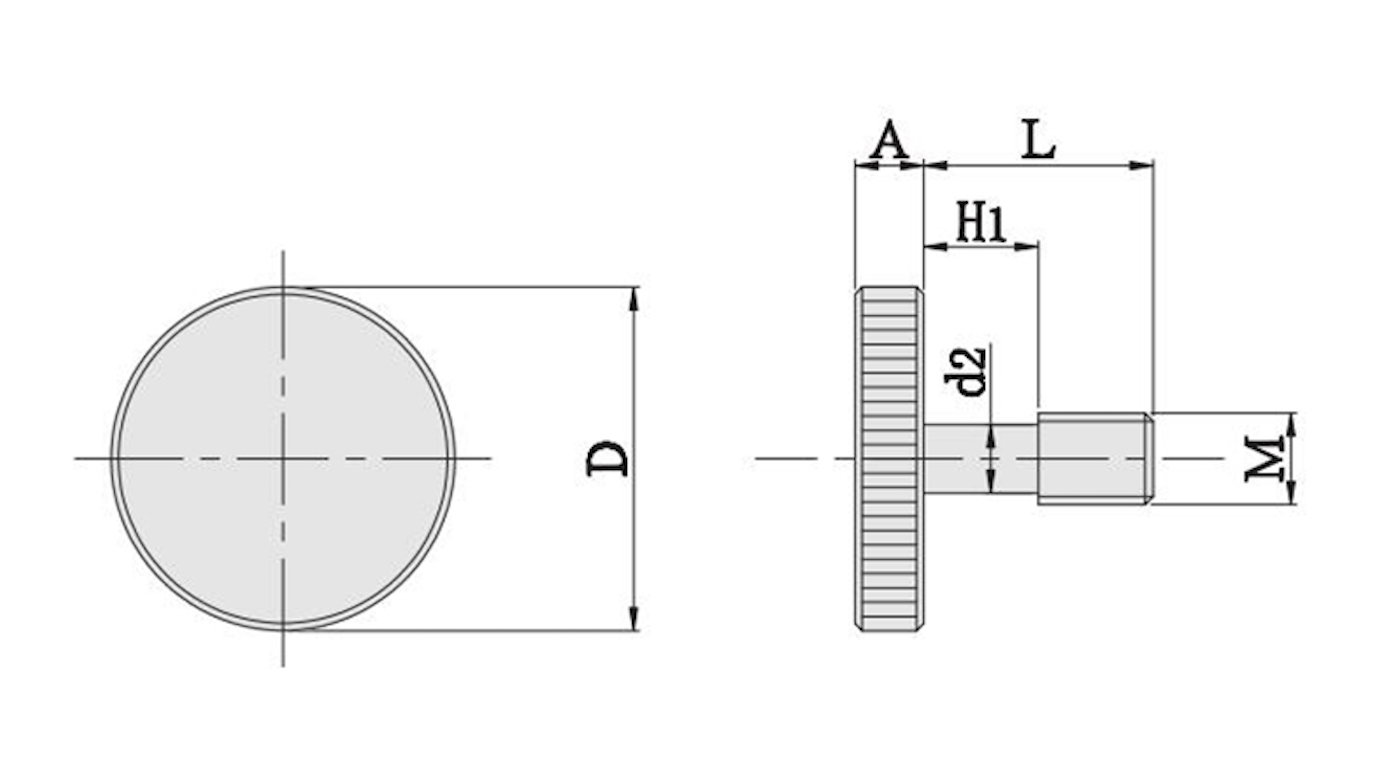

Technical Drawing





Datasheet



MODEL NO. M L D A D2 H1
MATERIAL:
STAINLESS STEEL 303
P-1009S-3-12-10 3 10 12 2.5 2 6
P-1009S-4-16-10 4 10 16 3.5 3 5
P-1009S-4-16-15 4 15 16 3.5 3 10
P-1009S-5-20-10 5 10 20 4 3.8 4
P-1009S-5-20-15 5 15 20 4 3.8 9
P-1009S-5-20-20 5 20 20 4 3.8 14
P-1009S-6-24-15 6 15 24 5 4.5 7
P-1009S-6-24-20 6 20 24 5 4.5 12
P-1009S-6-24-30 6 30 24 5 4.5 22
P-1009S-8-30-20 8 20 30 6 6 10
P-1009S-8-30-30 8 30 30 6 6 20
