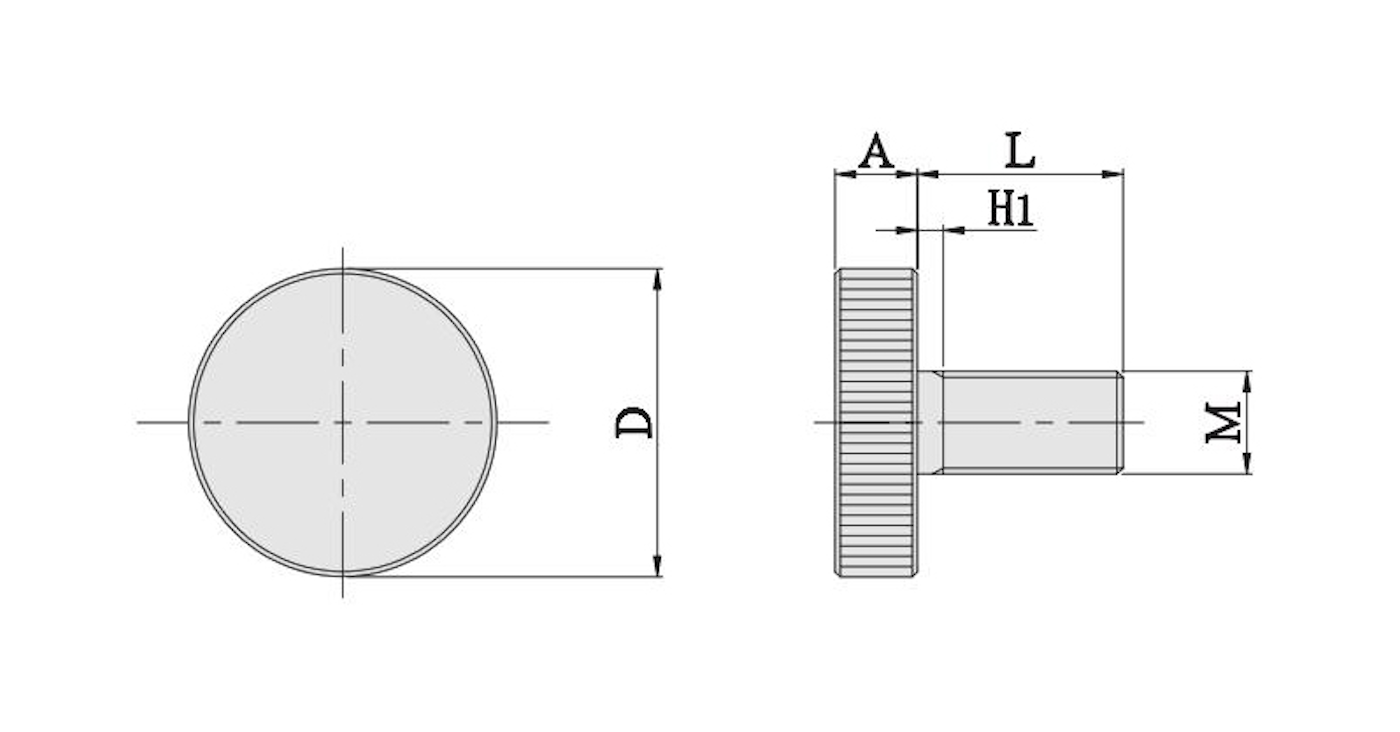

| MODEL NO. | M | L | D | A | H1 |
| MATERIAL: STAINLESS STEEL 303 |
|||||
| P-1011S-3-10-10 | 3 | 10 | 10 | 2.5 | 1 |
| P-1011S-4-12-10 | 4 | 10 | 12 | 3.5 | 1.5 |
| P-1011S-4-12-16 | 4 | 16 | 12 | 3.5 | 1.5 |
| P-1011S-5-16-10 | 5 | 10 | 16 | 4 | 1.5 |
| P-1011S-5-16-16 | 5 | 16 | 16 | 4 | 1.5 |
| P-1011S-5-16-20 | 5 | 20 | 16 | 4 | 1.5 |
| P-1011S-6-20-10 | 6 | 10 | 20 | 5 | 1.5 |
| P-1011S-6-20-16 | 6 | 16 | 20 | 5 | 1.5 |
| P-1011S-6-20-20 | 6 | 20 | 20 | 5 | 1.5 |
| P-1011S-6-20-25 | 6 | 25 | 20 | 5 | 1.5 |
| P-1011S-8-26-16 | 8 | 16 | 26 | 6 | 2 |
| P-1011S-8-26-20 | 8 | 20 | 26 | 6 | 2 |
| P-1011S-8-26-25 | 8 | 25 | 26 | 6 | 2 |
| P-1011S-8-26-30 | 8 | 30 | 26 | 6 | 2 |
| P-1011S-10-30-20 | 10 | 20 | 30 | 8 | 2.5 |
| P-1011S-10-30-25 | 10 | 25 | 30 | 8 | 2.5 |
| P-1011S-10-30-30 | 10 | 30 | 30 | 8 | 2.5 |
