| MODEL NO. | M | L | D | H | S | D |
| P-2751W (B TYPE) | 4 | 10 | 15 | 10 | 3 | 10.5 |
| P-2751W (B TYPE) | 4 | 15 | 15 | 10 | 3 | 10.5 |
| P-2751W (B TYPE) | 5 | 10 | 18.5 | 12 | 3 | 12 |
| P-2751W (B TYPE) | 5 | 15 | 18.5 | 12 | 3 | 12 |
| P-2751W (B TYPE) | 5 | 20 | 18.5 | 12 | 3 | 12 |
| P-2751W (B TYPE) | 6 | 10 | 22 | 14 | 5 | 15.5 |
| P-2751W (B TYPE) | 6 | 15 | 22 | 14 | 5 | 15.5 |
| P-2751W (B TYPE) | 6 | 20 | 22 | 14 | 5 | 15.5 |
| P-2751W (B TYPE) | 8 | 15 | 26 | 17 | 5 | 19 |
| P-2751W (B TYPE) | 8 | 25 | 26 | 17 | 5 | 19 |
| P-2751W (B TYPE) | 10 | 25 | 40 | 21 | 6 | 29 |

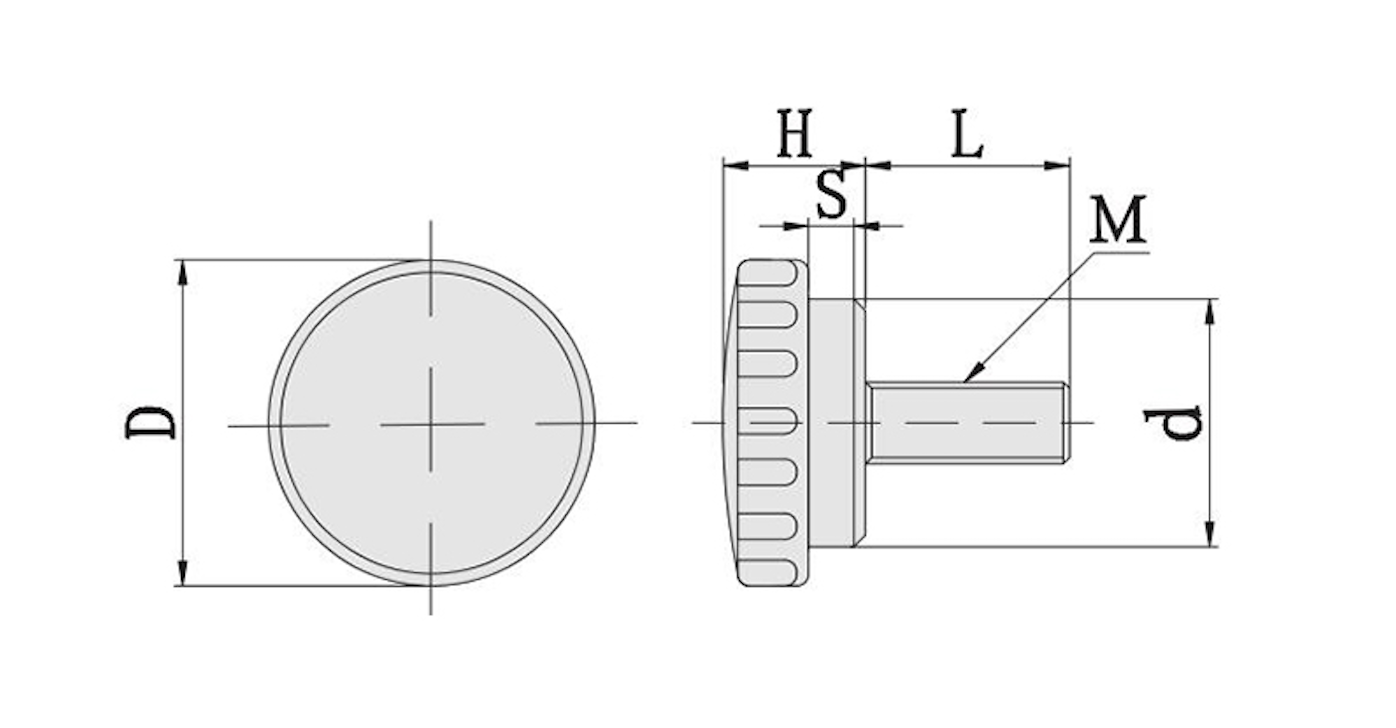

| ORDER INSTRUCTIONS: M STANDS FOR THREAD, D STANDS FOR OUTER DIAMETER, L STANDS FOR OUTER THREAD DEPTH. |
||||||
| EXAMPLE: P-2751W (B TYPE) M4*14*10 | ||||||
