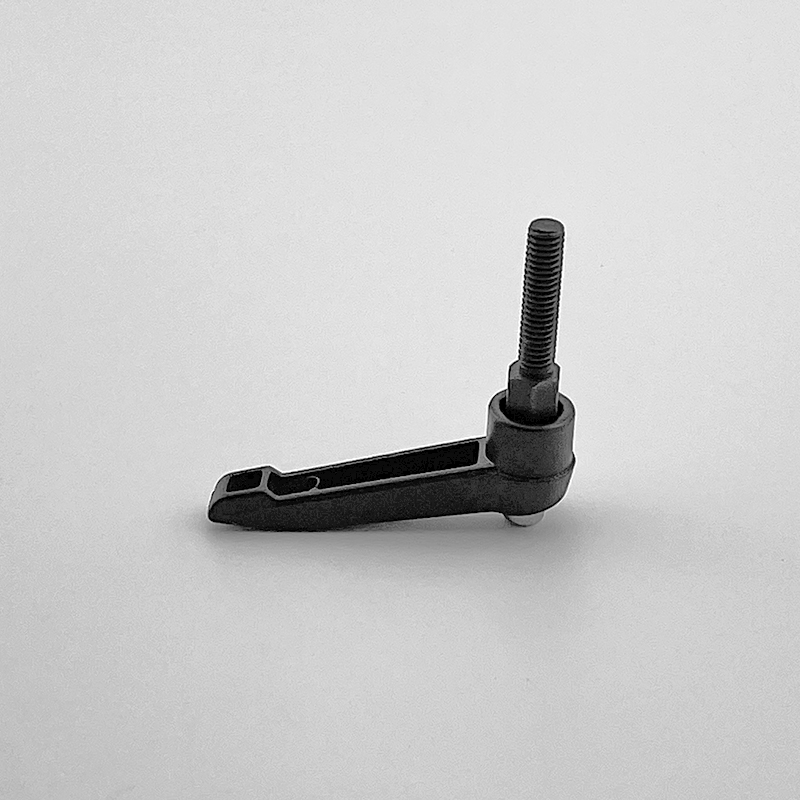

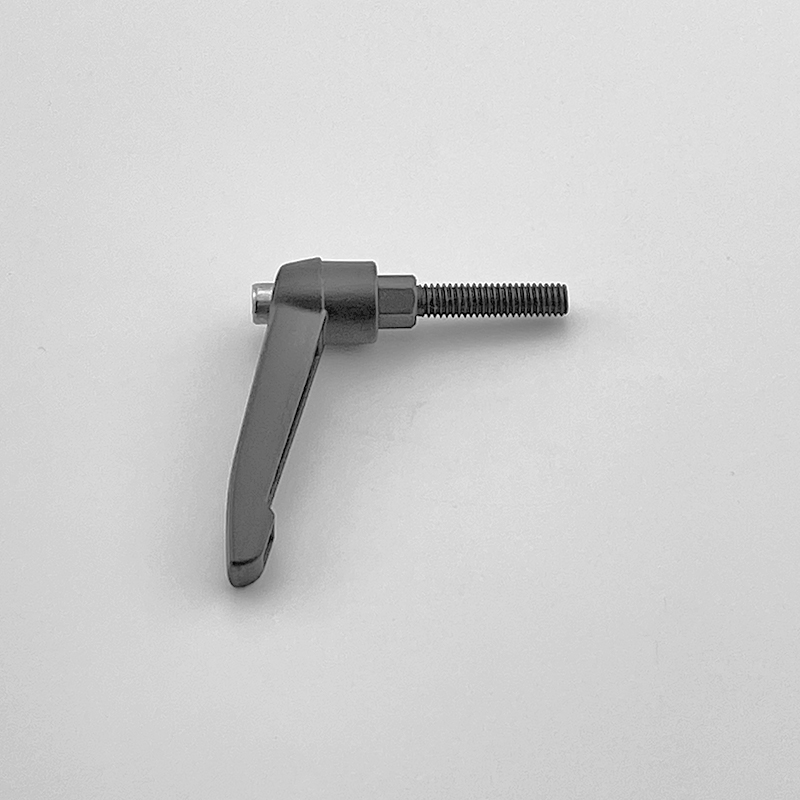

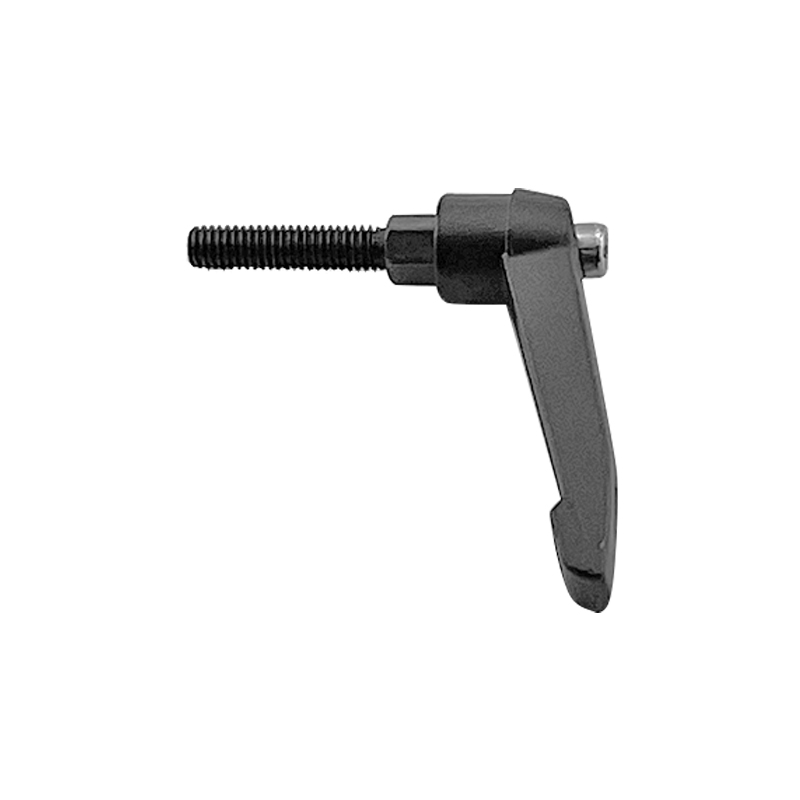

S-2911Z-B Equipment Lock Sets

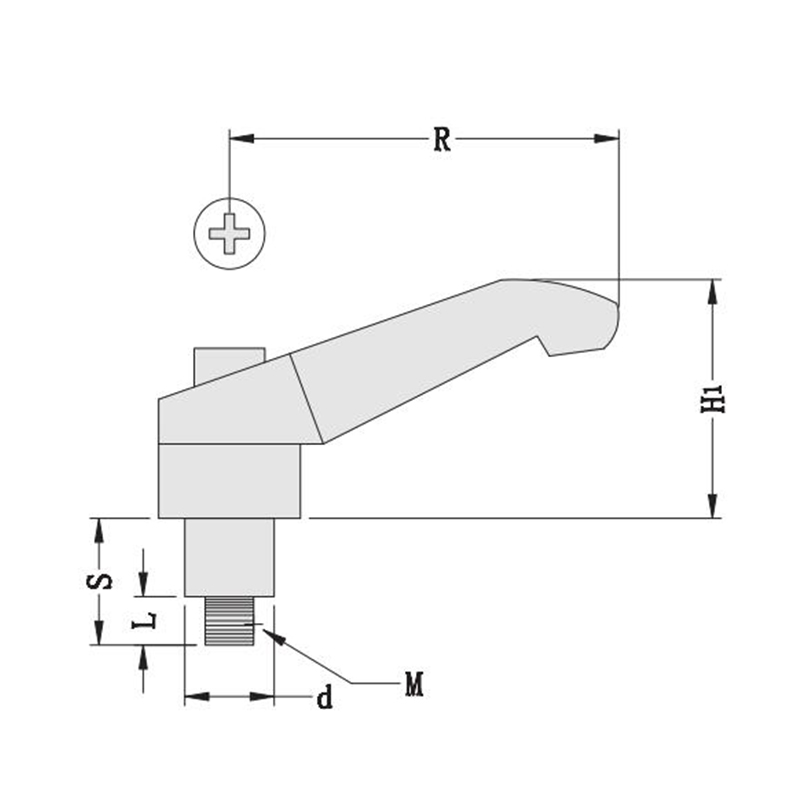

Technical Drawing





Datasheet



MODEL NO. M R                (±5MM) L             (±2MM) H1             (±5MM) S             (±2MM) D
(-0.5MM)
S-2911Z-6-52-16 (B TYPE) 6 50 16 30 5 8
S-2911Z-6-52-20 (B TYPE) 6 50 20 30 5 8
S-2911Z-6-52-25 (B TYPE) 6 50 25 30 5 8
S-2911Z-8-65-20 (B TYPE) 8 65 20 38 8 12
S-2911Z-8-65-25 (B TYPE) 8 65 25 38 8 12
S-2911Z-8-65-30 (B TYPE) 8 65 30 38 8 12
S-2911Z-8-65-40 (B TYPE) 8 65 40 38 8 12
S-2911Z-10-82-20 (B TYPE) 10 82 20 52 10 14
S-2911Z-10-82-25 (B TYPE) 10 82 25 52 10 14
S-2911Z-10-82-32 (B TYPE) 10 82 32 52 10 14
S-2911Z-10-82-40 (B TYPE) 10 82 40 52 10 14
S-2911Z-12-95-25 (B TYPE) 12 95 25 57 16 17
S-2911Z-12-95-32 (B TYPE) 12 95 32 57 16 17
S-2911Z-12-95-40 (B TYPE) 12 95 40 57 16 17
S-2911Z-12-95-50 (B TYPE) 12 95 50 57 16 17
ORDER INSTRUCTIONS: M STANDS FOR THREAD, R STANDS FOR CENTER OF THE THREAD TO END OF HANDLE, L STANDS FOR OUTER THREAD DEPTH.
EXAMPLE: S-2911Z (B TYPE)   M6*52*16
